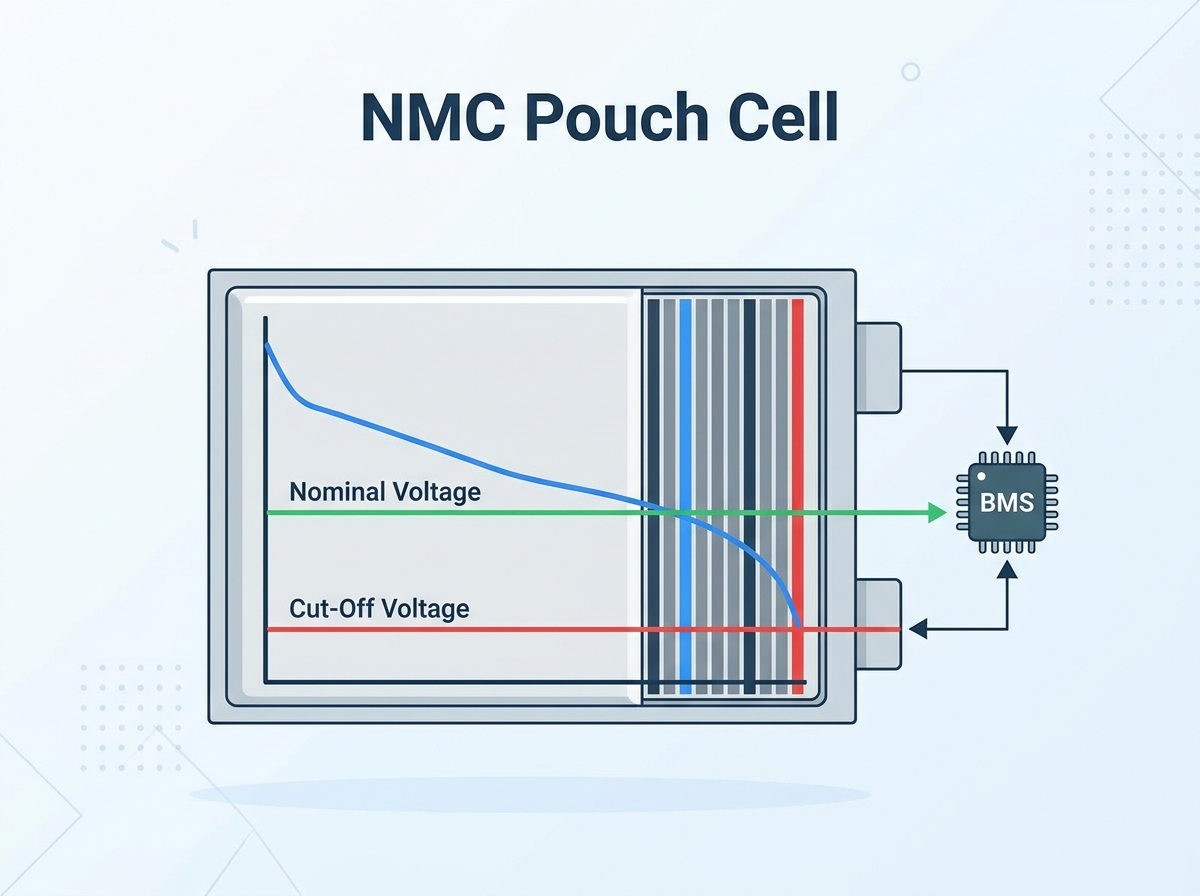

The high energy density and form factor flexibility of the NMC pouch cell make it a premier choice for electric vehicles and high-drain applications. These advantages demand uncompromising precision in voltage management. Misinterpreting voltage specifications leads to severe consequences on the shop floor and in the field. Ignoring voltage sag under heavy load triggers false system shutdowns. Misunderstanding resting voltage causes inaccurate capacity readings. Misconfiguring cut-off thresholds leads to accelerated cell degradation, mechanical swelling, or catastrophic thermal runaway.
To transition from cell selection to safe pack assembly, engineering teams must align nominal, peak, and cut-off voltages with exact Battery Management System (BMS) parameters. This guide breaks down the critical voltage thresholds, dynamic behaviors, and BMS configurations required for reliable deployment. You will learn how to set precise protection limits, interpret dynamic load behaviors accurately, and configure charging profiles that balance maximum capacity with long-term reliability.
Strict Voltage Boundaries: Standard NMC chemistry operates safely within a rigid 2.5V (absolute minimum) to 4.2V (absolute maximum) window; exceeding these limits causes irreversible chemical degradation.
Dynamic Load Considerations: Voltage sag during Wide Open Throttle (WOT) or high-current draw must be factored into BMS under-voltage protection to prevent nuisance tripping while maintaining cell safety.
Resting vs. Active Voltage: Terminal voltage will read artificially high immediately after charging (surface charge) and requires a settling period to reflect true Open Circuit Voltage (OCV).
BMS is Non-Negotiable: A properly configured BMS utilizing Constant Current/Constant Voltage (CC/CV) profiles and precise Over-Voltage/Under-Voltage Protection (OVP/UVP) is mandatory for lifecycle optimization and safety compliance across all lithium chemistries.
Trade-offs in Cycle Life: Limiting the maximum charge voltage to 4.05V–4.1V instead of the 4.2V maximum can exponentially increase the cycle life of an NMC pouch cell, sacrificing minor top-end capacity for long-term reliability.
Nominal voltage represents the average operating voltage during a standard discharge cycle. For standard NMC (Nickel Manganese Cobalt) chemistry, this value typically sits between 3.6V and 3.7V. We determine this figure by discharging a fully charged cell at a moderate rate, usually 0.2C to 0.5C, and calculating the median voltage over the entire discharge curve. This metric serves as the foundational baseline for all energy calculations on the bench.
You use the nominal voltage to calculate total pack energy in Watt-hours (Wh). Multiplying the nominal voltage by the cell's Ampere-hour (Ah) capacity yields the total energy. When building battery packs, you scale this nominal voltage by connecting cells in series (S) and parallel (P). The math dictates the final system architecture and component selection.
Let's look at how this scales to the pack level. A 14S (14 cells in series) configuration yields a nominal voltage of approximately 50.4V (14 x 3.6V). Fully charged, this pack reaches 58.8V (14 x 4.2V). A 16S configuration pushes the nominal voltage to 57.6V, with a maximum charge voltage of 67.2V. You must design motor controllers, inverters, and pre-charge circuits to handle this entire voltage sweep, not just the nominal rating. If you size your contactors based only on the 50.4V nominal figure, you risk welding the contacts shut when the pack is fully charged at 58.8V.
The absolute maximum terminal voltage for a standard NMC cell is 4.20V. Manufacturing tolerances generally allow a strict variance of ± 0.05V per cell. Pushing voltage beyond this hard limit triggers immediate and irreversible chemical breakdown within the cell architecture. You cannot rely on the charger's display alone; you must verify terminal voltage at the cell tabs using a calibrated multimeter during the initial pack balancing phase.
Surface charge creates a temporary resting voltage phenomenon. Immediately after completing a charge cycle, the terminal voltage reads artificially high. The internal chemistry requires a settling period, often several hours, to reach equilibrium. Only after this resting phase will a multimeter reflect the true Open Circuit Voltage (OCV). Calibrating your BMS based on immediate post-charge voltage leads to inaccurate State of Charge (SoC) estimations and premature balancing triggers.
Overcharging carries severe implementation risks. Exceeding 4.2V causes lithium plating on the anode. The electrolyte begins to oxidize, generating gas. Because pouch cells lack a rigid cylindrical casing, this gas generation leads directly to mechanical swelling. Swollen cells exert pressure on adjacent cells, compromising the structural integrity of the entire module and potentially rupturing the aluminum laminate pouch.
Engineers face a distinct evaluation dimension regarding maximum charge limits. Charging to a full 4.2V extracts 100% of the rated capacity but stresses the internal chemistry. Limiting the charge to 4.0V or 4.1V captures roughly 80% to 90% of the capacity. This slight reduction in range drastically reduces mechanical stress and extends the overall cycle life of the pack. For stationary storage applications, this trade-off is almost always worth making.
The discharge cut-off voltage marks the absolute lower limit of operation. At this threshold, the cell is considered fully depleted, reaching 0% State of Charge. For NMC chemistry, manufacturers typically define this limit between 2.5V and 2.8V under load. Extracting energy below this point provides negligible additional runtime but introduces massive chemical risks.
The discharge curve features a distinct "knee" around 3.2V. Below this point, the voltage drops off a cliff. There is virtually no usable energy left between 3.0V and 2.5V. Pushing the cell into this deep discharge zone is dangerous and counterproductive.
Deep discharging below 2.5V initiates copper dissolution. The copper current collector on the anode begins to break down and dissolve into the electrolyte. When you subsequently recharge the cell, these dissolved copper ions precipitate out. They form metallic dendrites that pierce the separator.
This creates internal short circuits. A cell damaged by deep discharge may appear to function normally for several cycles before suddenly failing. Permanent capacity loss is guaranteed. To prevent this, system designers must enforce strict low-voltage cut-offs at both the hardware and software levels, ensuring the BMS physically disconnects the load before the cells reach this critical threshold.
Internal resistance (IR) causes a phenomenon known as voltage sag during high-current discharge events. When an electric vehicle operator demands Wide Open Throttle (WOT), the motor pulls massive amperage from the battery pack. According to Ohm's Law, this high current multiplying against the cell's internal resistance results in an immediate voltage drop at the terminals.
You must quantify acceptable sag to design a robust system. Let's look at a practical calculation. If a cell has 2 milliohms (0.002 ohms) of internal resistance and you pull 100 amps, the voltage sag is V = I * R = 100 * 0.002 = 0.2V. During a WOT event, a temporary drop of 0.2V to 0.4V per cell is entirely typical. The exact magnitude depends heavily on the specific C-rate demanded and the DC internal resistance (DCIR) of the cell. High-performance cells with thicker tabs and optimized chemistry exhibit less sag.
This creates a complex problem framing for BMS programming. The system must differentiate between a genuinely depleted cell and a temporary voltage drop under heavy load. If the BMS relies on a hard, instantaneous voltage cut-off, a WOT event at 30% SoC might drag the terminal voltage below 2.8V. This triggers a premature and dangerous system shutdown while driving. You must implement time-delayed protection thresholds to manage this dynamic behavior.
NMC chemistry exhibits a distinct, non-linear discharge curve. This wide, sloped curve contrasts sharply with the extremely flat discharge profile of LiFePO4 batteries. The sloped nature of the NMC curve makes it somewhat easier to estimate remaining capacity based on voltage alone, but only under strict resting conditions.
The curve features a long plateau region between approximately 3.9V and 3.4V. Within this window, the voltage drops slowly and steadily as the cell discharges. At the top end (4.2V to 3.9V) and the bottom end (3.4V to 2.8V), the voltage drop-off is steep and rapid. This non-linear behavior complicates real-time capacity tracking.
| Approximate State of Charge (SoC) | Resting Open Circuit Voltage (OCV) | Discharge Curve Phase |
|---|---|---|
| 100% | 4.20V | Steep Drop |
| 80% | 3.95V | Entering Plateau |
| 50% | 3.70V | Mid-Plateau (Nominal) |
| 20% | 3.45V | Exiting Plateau |
| 0% | 2.80V - 3.00V | Steep Drop (Cut-off) |
Relying solely on voltage for SoC estimation remains insufficient for active NMC cells. Because voltage sags under load and rebounds during rest, a simple voltage lookup table will display wild fluctuations during operation. You must utilize coulomb counting within the BMS. Coulomb counting measures the exact current flowing in and out of the pack, integrating this data over time to provide a highly accurate, stable SoC percentage.
Analyzing the Farasis P76D pouch cell specifications provides a clear benchmark for high-capacity NMC technology. This specific cell delivers a substantial 76Ah capacity, making it ideal for energy-dense module designs. The voltage parameters align with top-tier NMC chemistry standards.
The nominal voltage sits at 3.7V, indicating a robust plateau region during discharge. The recommended charge limit is strictly capped at 4.2V, while the standard discharge cut-off is set at 2.75V. These ratings yield exceptional energy density metrics, allowing engineers to pack maximum kilowatt-hours into restricted physical footprints. The wide tabs on these cells are specifically designed to handle high continuous discharge currents while minimizing localized heating.
The thermal characteristics and discharge capabilities of the Farasis P76D align perfectly with success criteria in EV drivetrains and demanding energy storage applications. High capacity per cell reduces the number of parallel connections required in a pack. This simplifies the busbar architecture, reduces the number of required laser welds, and eliminates potential points of failure.
However, utilizing large-format pouch cells introduces specific mechanical constraints. Pouch cells naturally expand and contract during normal charge and discharge cycles. You must implement engineered compression plates and foam pads within the module housing. Proper mechanical compression manages this normal expansion, prevents delamination of the internal layers, and maintains optimal contact between the electrodes and the separator. Without adequate compression, the internal resistance will steadily climb as the cell ages.
Defining exact BMS setpoints is a critical solution approach for NMC chemistry. You cannot rely on default factory settings; you must tailor the thresholds to the specific cell data sheet. Proper configuration utilizes a tiered approach, utilizing both alert levels and hard disconnect levels.
OVP Alert Threshold: Set to ~4.15V. The BMS triggers a warning and may initiate balancing or request a charge current reduction from the charger via CAN bus.
OVP Disconnect Threshold: Set strictly at 4.25V. The BMS opens the contactor, physically severing the charge current to prevent catastrophic overcharging.
UVP Alert Threshold: Set to ~3.0V. The system warns the user of low capacity and may restrict motor torque to limit current draw.
UVP Disconnect Threshold: Set between 2.7V and 2.8V. The BMS completely shuts down the discharge path to prevent copper dissolution.
You must configure delay timers for these UVP settings. A typical delay of 2 to 5 seconds prevents transient voltage sag during WOT events from triggering a nuisance disconnect. If the voltage drops below 2.7V for only 500 milliseconds during hard acceleration, the timer prevents a shutdown. If the voltage remains below 2.7V for a full 3 seconds, the BMS recognizes a genuinely depleted cell and opens the contactor.
Cell balancing ensures all cells within a series string reach their maximum charge simultaneously. Without balancing, the cell with the lowest capacity dictates the usable energy of the entire pack. You must choose between active and passive balancing strategies based on pack size and application.
Passive balancing bleeds excess voltage from the highest-charged cells by routing current through bypass resistors, dissipating the energy as heat. For well-matched, high-quality NMC pouch cells, passive balancing is typically sufficient. The balancing current is usually small, ranging from 50mA to 200mA. Keep in mind that a 50mA bleed resistor will take days to balance a severely out-of-balance 76Ah cell, which is why initial top-balancing on the bench is critical before final pack assembly.
The BMS must initiate passive balancing only near the very top of the charge cycle, typically above 4.0V per cell. Attempting to balance cells during the flat portion of the discharge curve (around 3.6V) is highly risky. Because the voltage differences in the plateau region are minimal, the BMS may misinterpret slight variations in internal resistance as capacity imbalances, leading to incorrect and counterproductive balancing actions.
Voltage thresholds are not static; they must be dynamically adjusted based on ambient and internal cell temperatures. A robust BMS utilizes multiple thermistors placed directly against the cell tabs and pouch bodies to monitor real-time thermal data. Placing thermistors on the busbars provides the fastest response time for detecting high-current heating.
Charging NMC cells at or below freezing (0°C) presents a severe implementation risk. At low temperatures, the intercalation of lithium ions into the graphite anode slows down drastically. If you apply standard charge currents at freezing temperatures, the lithium ions cannot penetrate the anode fast enough. They accumulate on the surface, causing permanent lithium plating.
To prevent this, the BMS must enforce strict thermal limits. Below 5°C, the BMS should severely derate the allowable charge current. At or below 0°C, the BMS must completely disable charge current while still allowing low-rate discharge. High-temperature cut-offs are equally critical; charge and discharge should be disabled if cell temperatures exceed 60°C to prevent thermal runaway. Active liquid cooling systems should be integrated with the BMS to maintain the pack within the optimal 20°C to 35°C window.
High-tier NMC packs require a strict Constant Current / Constant Voltage (CC/CV) charging profile. This two-stage process ensures safe, complete charging without exceeding maximum voltage thresholds. You must program your charging hardware to follow this exact sequence.
During the Bulk Stage (CC), the charger delivers a constant, maximum allowable current to the battery pack. The voltage steadily rises as the pack absorbs energy. This stage continues until the highest cell in the pack reaches the target absorb voltage, typically 4.2V. The CC phase delivers roughly 80% to 90% of the total charge. Cells with higher internal resistance will hit this voltage threshold earlier, transitioning the charger into the next phase prematurely.
Once the target voltage is hit, the charger transitions to the Absorb Stage (CV). The charger holds the voltage perfectly constant at 4.2V. As the cell reaches total saturation, its internal resistance pushes back, causing the accepted current to naturally taper down. Terminating the charge based on this current taper is critical. The charge cycle should terminate completely when the current drops to a predetermined threshold, usually 0.05C. Holding the cell at 4.2V indefinitely causes micro-overcharging and rapid degradation.
Setting the target charge voltage requires a decision framework based on your specific application goals. You must evaluate the trade-off between absolute maximum range and total lifetime energy throughput.
| Target Charge Voltage | Usable Capacity per Cycle | Estimated Cycle Life | Primary Use Case |
|---|---|---|---|
| 4.20V | 100% | 500 - 800 Cycles | Performance EVs, Drones |
| 4.10V | ~90% | 1,200 - 1,500 Cycles | Commuter EVs, Marine |
| 4.05V | ~80% | 2,000+ Cycles | Grid Storage, Solar Banks |
Charging an NMC pack to 4.2V provides maximum immediate range but stresses the cathode structure, resulting in a shorter lifespan. Reducing the target voltage to 4.05V sacrifices the top 20% of capacity. However, this reduction in chemical stress can easily double or triple the total cycle life of the pack. For stationary storage or applications where daily maximum range is not critical, lowering the charge voltage yields a vastly superior total lifetime energy throughput.
Safe and efficient deployment of NMC chemistry hinges on strict adherence to the 2.5V–4.2V operational window. True system reliability requires a dynamic BMS configuration that actively accounts for voltage sag, temperature fluctuations, and specific cycle life goals. Hardware selection and software parameters must work in perfect synchronization.
Take the following actionable steps to secure your battery system design:
Review your cell manufacturer's datasheets to extract the exact DC internal resistance and maximum continuous C-rate limits for your specific modules.
Define your application's cycle life requirements to establish a firm target charge voltage, deciding between 4.2V for maximum capacity or 4.05V for extended longevity.
Program your BMS with a 3-second delay on the under-voltage protection threshold to prevent nuisance tripping during high-current acceleration events.
Prototype your CC/CV charging profile under simulated load conditions to verify that charge termination occurs precisely at the 0.05C current taper.
For specialized engineering support regarding cell selection and system architecture, contact us to align your BMS parameters with top-tier hardware.
A: The absolute maximum terminal voltage is 4.20V per cell. Exceeding this limit causes irreversible chemical damage, including lithium plating, electrolyte oxidation, gas generation, and mechanical swelling of the pouch.
A: The safe lower limit is typically 2.5V to 2.8V under load. Discharging below 2.5V causes the copper current collector on the anode to dissolve, leading to internal short circuits and permanent capacity loss.
A: During a heavy load event like WOT, a temporary voltage sag of 0.2V to 0.4V per cell is normal. The exact drop depends on the cell's internal resistance and the specific current draw. BMS delays should prevent this sag from triggering a shutdown.
A: This is due to surface charge. The chemical reactions inside the cell require time to reach equilibrium after the charging current stops. The voltage will naturally settle down to its true Open Circuit Voltage (OCV) over several hours.
A: Charging to 4.2V places maximum stress on the cathode structure. By limiting the peak charge to 4.05V or 4.1V, you reduce this chemical and mechanical stress. This sacrifices a small amount of usable capacity but can double the total number of charge cycles the battery can endure.
