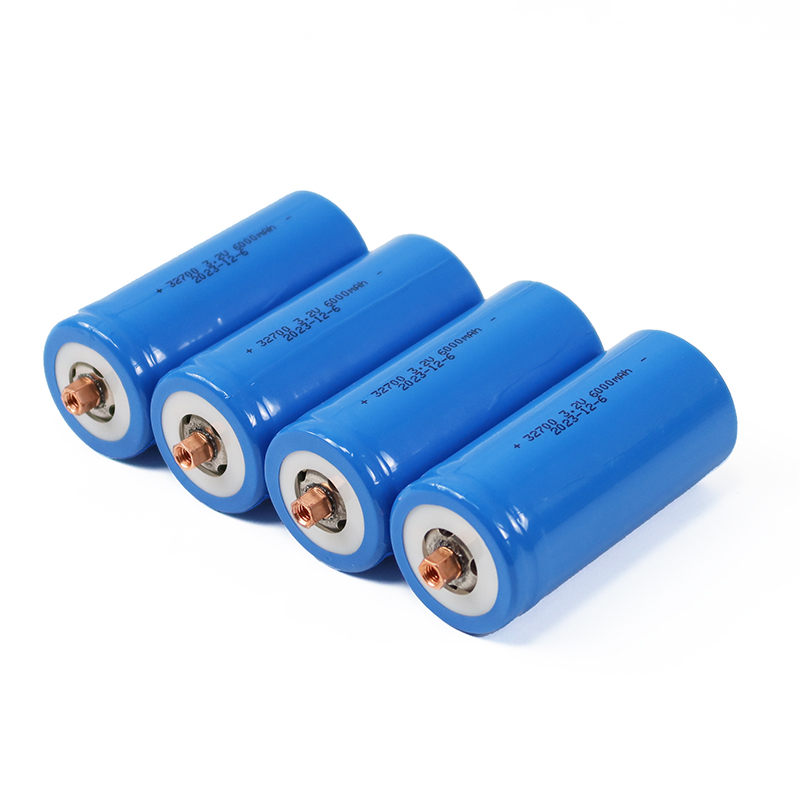

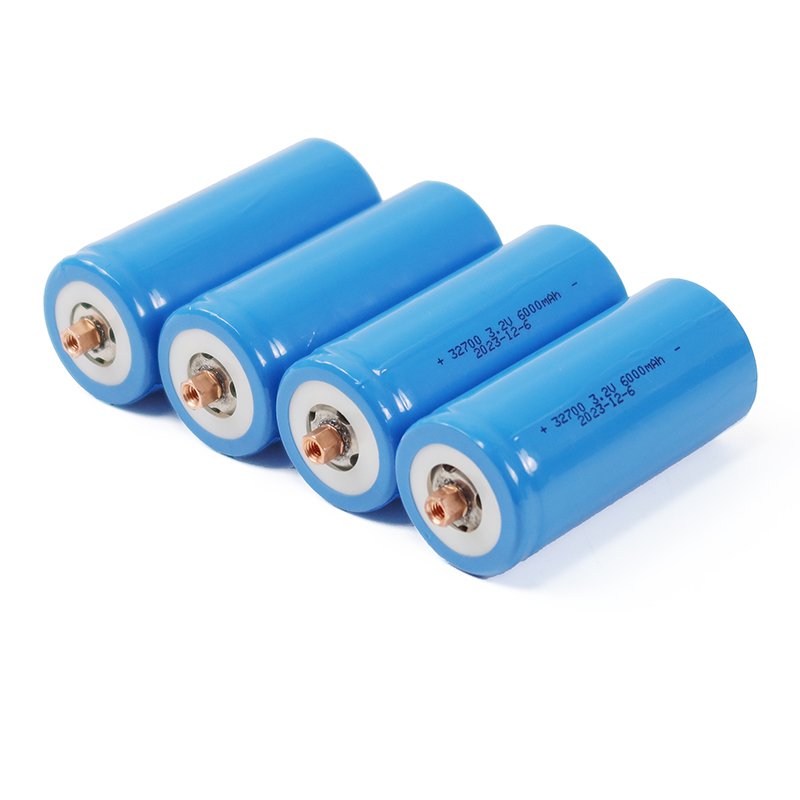

32700 3.2V 6000mAh LiFePO4 Cylindrical Battery Cell

32700 3.2V 6000mAh LiFePO4 Cylindrical Cell
Model: 32700 | 19.2Wh | 4000+ Cycles | Rugged & Safe Power Solution

Brand:
Misen
Model:
32700
Cell Grade:
Grade A
Nominal Capacity:
6000mah OEM/ODM
Nominal Voltage:
3.2V
Size(mm):
32*70mm
Cycle Life:
≥80% capacity after 4000 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Model Number	LFP 32700
Battery Size	32*70MM
Anode Material	LiFePO4 Cylindrical Battery CellNCM
Nominal Capacity	6000mah
Nominal Voltage	3.2V
Max Continuous Charge	CCCV,6000mA(1C),4.1±0.05V,100mA cut-off
Max.Continuous Discharge	DC,15000mA(3C),2.50V cut-off
Discharge(charge) voltage Range	4.20-2.50V
Cell Weight	95.0±2.0g
Cycle life	4000cycs

Description

✅ Performance vs. Alternatives

Parameter	32700 LiFePO4	18650 Li-ion	Lead-Acid 6Ah
Cycle Life	4,000+	500	300
Safety	Non-flammable	Thermal risk	Acid leakage
Energy Eff.	>95%	90%	70–80%
Temp Range	-20°C to 60°C	0°C to 45°C	-10°C to 40°C
Lifespan	10+ years	2–3 years	1–2 years

✅ Economic Benefits

70% Lower Lifetime Cost vs. lead-acid (no maintenance, fewer replacements).
Drop-in Compatibility: Fits existing 32700/32650 battery trays.

✅ Design Flexibility

Series/Parallel Configurations: Scalable for 12V/24V/48V packs (e.g., 4S1P = 12.8V/6Ah).
Terminal Options: Studs, solder tabs, or spring contacts for easy integration.

21700 18650集合图

Key Features

1. High-Capacity LiFePO4 Chemistry

3.2V Nominal Voltage | 6Ah Capacity (19.2Wh) – Optimized for energy and power balance.
4,000+ Deep Cycles (to 80% capacity @ 1C/1C) – 8× longer lifespan than lead-acid batteries.
Flat Discharge Curve: Maintains >3.0V for 90% of discharge, ensuring stable performance.

2. Superior Safety & Thermal Stability

Inherently Non-Combustible: LiFePO4 chemistry eliminates thermal runaway risk.
Wide Temp Range: -20°C to 60°C operation (heating support recommended below 0°C).
Certified Safety: Complies with UL 1973, IEC 62619, UN38.3 (passes crush, short-circuit, and overcharge tests).

3. High Discharge & Fast Charging

3C Continuous / 5C Pulse Discharge: Supports 18A continuous (30A peak) output.
1C Fast Charging: 0–100% in 1 hour with minimal capacity degradation.

4. Robust Cylindrical Design

Standard 32700 Size (32mm × 70mm): Compatible with most battery holders and fixtures.
Steel Casing: Resists corrosion and mechanical impact (IP67 option available).
Low Self-Discharge (<3% per month): Ideal for long-term storage.

Application

☀️ Solar Energy Storage

48V/60Ah Pack (16S10P): 3kWh for off-grid cabins or solar street lights.
10+ Year Lifespan: Withstands daily deep cycling.

Power Tools & DIY Equipment

20V/6Ah Pack (5S1P): Powers drills, saws, and lawn mowers with 18A continuous output.
Fast Charging: 1-hour recharge for industrial fleets.

Light Electric Mobility

36V/12Ah E-Bike Pack (10S2P): 432Wh for 40–50km range (350W motor).
Vibration Resistant: Handles rough terrains.

Backup Power & UPS

12V/24Ah Pack (4S4P): Reliable backup for routers, security cameras, and medical devices.
Maintenance-Free: No acid leaks or ventilation needs.

LFP-38120

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
