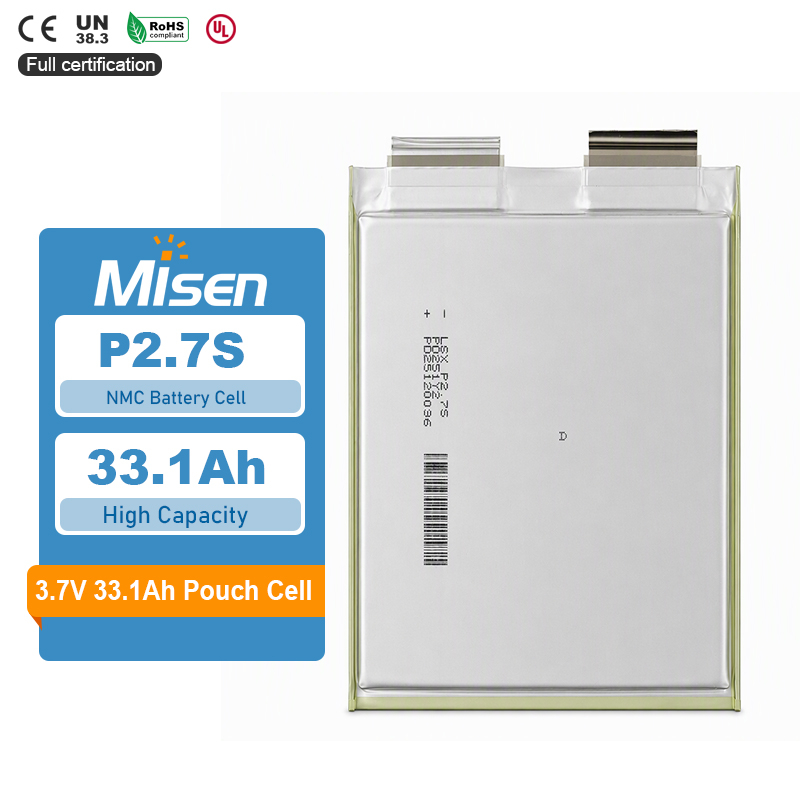

LG P2.7S is identified in the supplied specifications as a 3.7 V, 33.1 Ah rechargeable NCM pouch cell, with approximately 122.47 Wh of calculated nominal energy. Its listed dimensions are 9.4 × 160 × 232 mm. The reported discharge rates and resistance are user-provided values pending manufacturer verification. MisenBattery supplies cells and supports custom battery pack integration, with final operating limits established from confirmed specifications and application testing.
01 3.7 V, 33.1 Ah Nominal Specification
The supplied parameter table identifies LG P2.7S as a rechargeable NCM pouch cell with a nominal voltage of 3.7 V and capacity of 33.1 Ah. These values provide a starting point for series and parallel configuration planning. Confirm capacity test conditions and cell voltage limits before selecting the final pack configuration.
02 Approx. 122.47 Wh per Cell
Nominal single-cell energy is approximately 122.47 Wh, calculated as 3.7 V × 33.1 Ah. This figure helps compare nominal pack energy across proposed cell counts. Actual usable energy depends on the discharge profile, temperature, voltage window and system losses; it should be established through testing under the intended operating conditions.
03 Reported 15C Continuous Discharge
The user-provided continuous discharge rate is 15C, corresponding to a calculated current of 496.5 A on a 33.1 Ah capacity basis. This reported value supports preliminary evaluation of demanding load profiles. Manufacturer confirmation of cooling requirements, temperature, SOC range and discharge cut-off voltage is required before adopting it as a pack operating limit.
04 Reported 25C Pulse Discharge
The supplied table lists a 25C pulse discharge rate, equivalent to a calculated 827.5 A on the nominal capacity basis. Pulse duration, repetition interval and thermal conditions have not been provided. Use this value for preliminary specification review only, and confirm the complete pulse test conditions before sizing pack protection or approving a transient load.
05 Approx. 0.8 mΩ Reported Resistance
The supplied internal resistance value is approximately 0.8 mΩ. Measurement method, SOC and temperature are not specified, so this figure should not be treated as a confirmed DC resistance value. Obtain the corresponding test method and batch measurements before comparing cells or using resistance data to estimate voltage drop and heat generation.

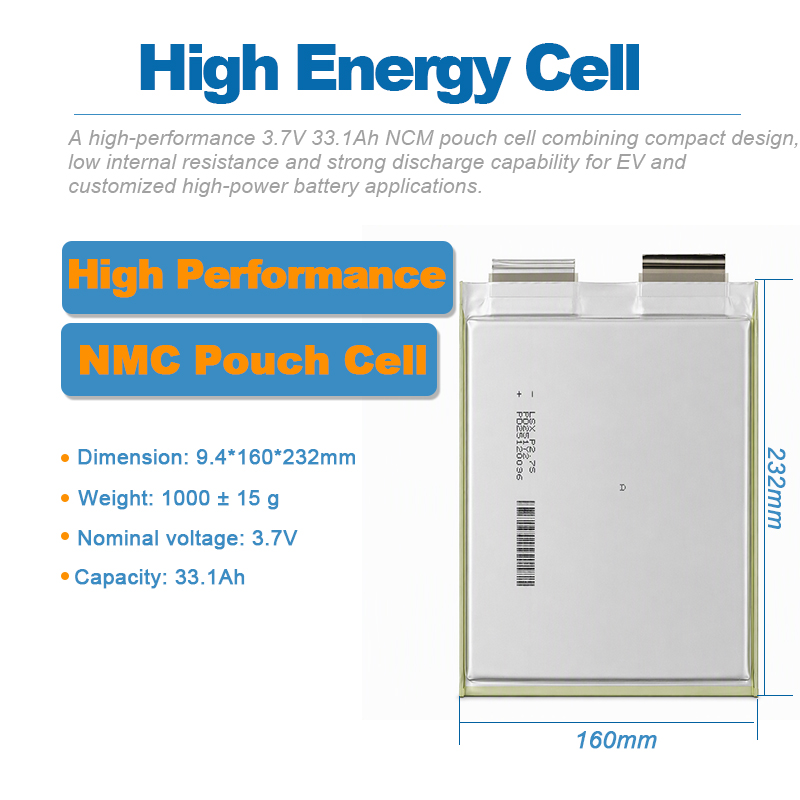

06 9.4 × 160 × 232 mm Pouch Format
The supplied thickness, width and length are 9.4 × 160 × 232 mm. This dimensional reference supports preliminary enclosure and cell arrangement studies. Confirm dimensional tolerances, whether tabs are included, tab geometry and manufacturer requirements for cell support or compression before finalizing insulation, interconnect positions and mechanical clearance.
Custom battery pack applications: MisenBattery supplies cells and supports custom pack evaluation for industrial equipment and other demanding load applications. Suitability requires confirmed cell limits and application testing. Pack integration should include a compatible BMS, fuse protection, voltage and temperature sensing, validated tab interconnects, insulation and appropriate thermal and mechanical design. Applicable CE, UN38.3, RoHS and UL documentation must be checked for the specific cell, pack and shipment; certification status is not established by the supplied parameter table.
