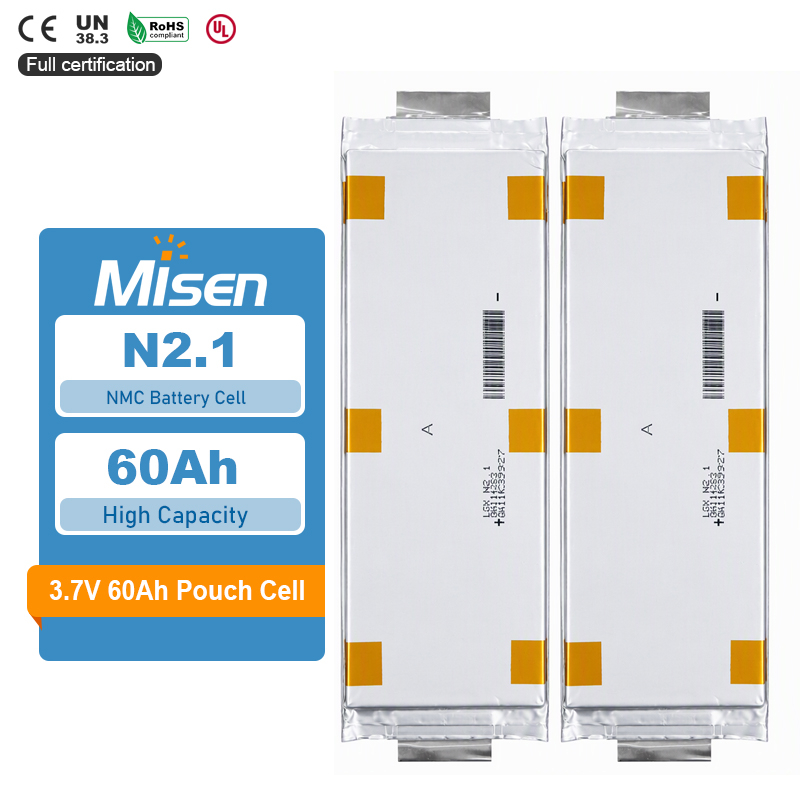

LG N2.1 is identified in the supplied specifications as a 3.7 V, 60 Ah rechargeable NCM pouch cell with approximately 222 Wh of calculated nominal energy. The table lists 5C continuous discharge and a separate reported 8C pulse discharge rate, with dimensions of 14 × 100 × 300 mm. MisenBattery supplies cells and supports custom pack evaluation using confirmed electrical limits and application-specific thermal and mechanical requirements.
01
60 Ah Capacity and Approx. 222 Wh
The supplied specifications identify LG N2.1 as a rechargeable NCM pouch cell with 60 Ah nominal capacity and 3.7 V nominal voltage. Calculated nominal energy is approximately 222 Wh per cell. These figures support preliminary series and parallel configuration planning; usable pack energy depends on temperature, load profile, operating voltage limits and system losses.
02
Reported 5C Continuous Discharge
Continuous discharge is listed as 5C, corresponding to a calculated 300 A on the 60 Ah nominal capacity basis. This reported rating provides a starting point for evaluating sustained load requirements. Confirm the manufacturer's temperature, SOC range, cooling requirements and discharge cut-off voltage before establishing a final pack operating limit.
03
Reported 8C Pulse Discharge
The supplied table lists an 8C pulse discharge rate, equivalent to a calculated 480 A on the nominal capacity basis. Pulse duration and repetition interval have not been provided. Confirm the full pulse conditions, thermal limits and required recovery time before using this value to approve transient loads or repeated peak-demand events.
04
Approx. 0.9 mΩ Reported Resistance
The supplied internal resistance value is approximately 0.9 mΩ. Measurement method, SOC, temperature and timing conditions were not provided, so this should not be treated as a confirmed DC resistance value. Obtain the corresponding measurement procedure before comparing cells, matching batches or calculating voltage drop and heat generation.
05
14 × 100 × 300 mm Pouch Format
Listed dimensions are 14 × 100 × 300 mm in thickness, width and length. These values support preliminary cell arrangement and enclosure planning. Confirm dimensional tolerances, whether tabs are included, tab geometry and manufacturer requirements for cell support before finalizing interconnect positions, insulation, spacing and mechanical clearance.
06
Separate Continuous and Pulse Specifications
The supplied data distinguishes a 5C continuous rate from a reported 8C pulse rate. Keeping these ratings separate helps engineers assess sustained demand and transient peaks using the appropriate conditions. Final current limits require confirmed cell specifications and application testing; the higher pulse figure must not replace the continuous operating rating.
Custom battery pack applications: MisenBattery supplies cells and supports custom pack evaluation for industrial equipment and mobility applications, subject to confirmed specifications and application testing. Integration should include a compatible BMS, fuse protection, voltage and temperature sensing, validated tab interconnects, insulation, cell spacing and suitable thermal and mechanical design. Confirm applicable CE, UN38.3, RoHS and UL documentation for the specific cell, pack and shipment; certification status is not established by the supplied table.
