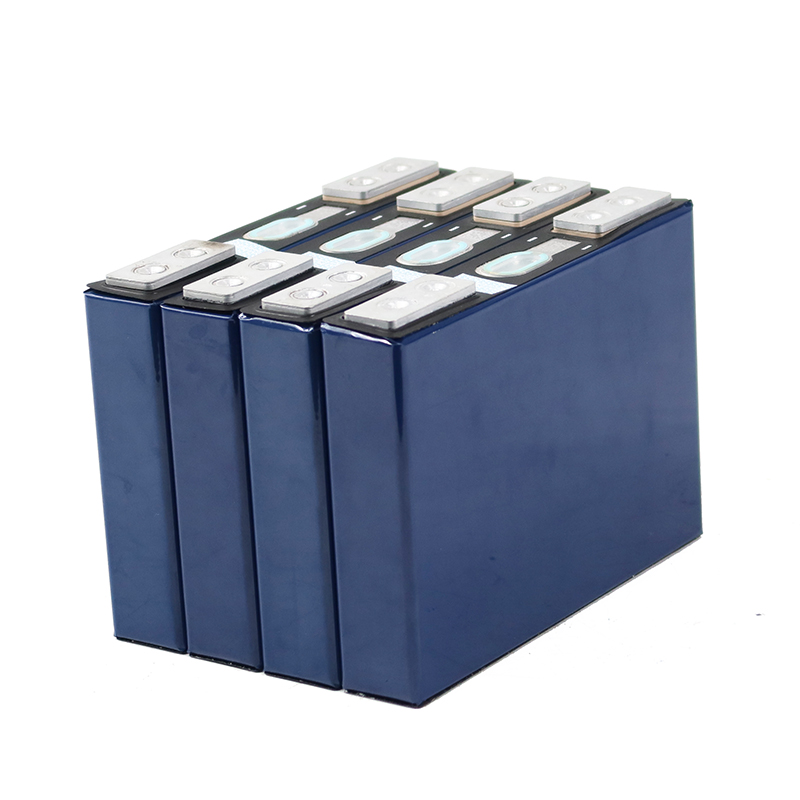

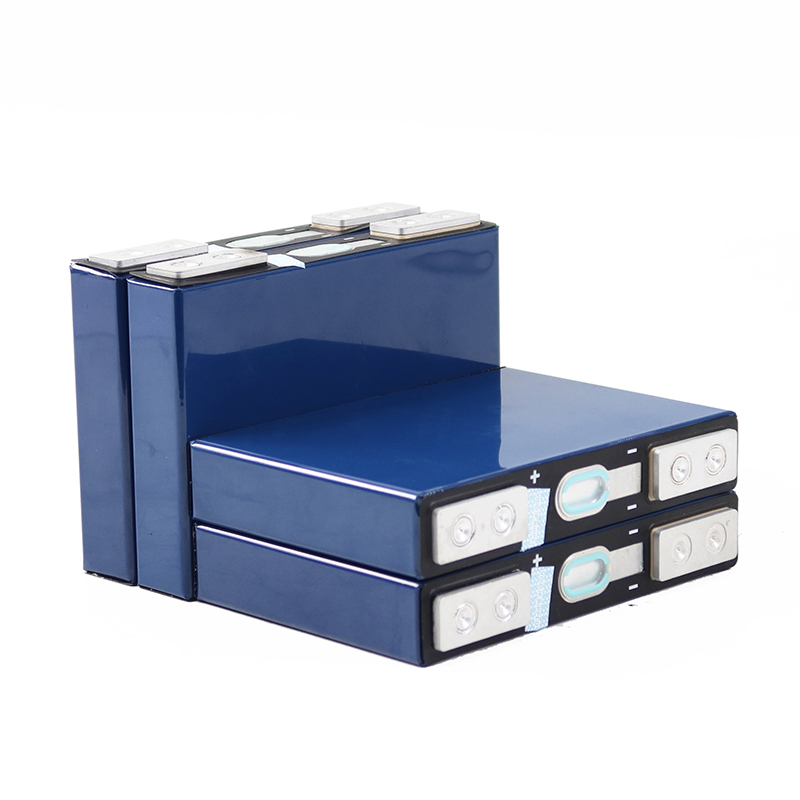

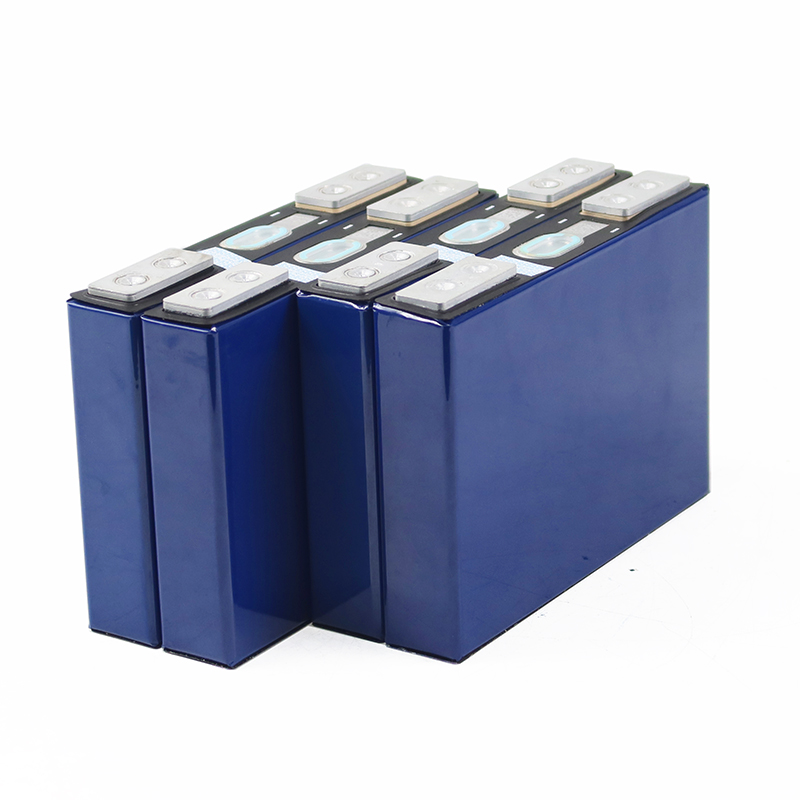

Lifepo4 3.2V 20Ah Prismatic Cell Battery for E Bike Scooter

The 3.2V 20Ah is a high-capacity lithium iron phosphate (LiFePO4) battery cell designed for large-scale energy storage and industrial applications.

Brand:
Misen
Cell Grade:
Grade A
Nominal Capacity:
20Ah
Weight:
0.85kg
Size(mm):
148*103*26mm
Cycle Life:
5000

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Model	3.2V 20AH cell
Rated Capacity	Around 20Ah
Nominal Voltage	3.2v
Max Discharge Current	1C
Max Charge Voltage	3.65v
AC Impedance Resistance	≤0.25mΩ
Charging Temperature	-5-60℃
Discharging Temperature	-30-60℃
Cycle Life	≥ 5000 times
Weight	0.85kg
Dimensions (LWH)	14810326mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Description

The 3.2V 20Ah is a high-capacity lithium iron phosphate (LiFePO4) battery cell designed for large-scale energy storage and industrial applications. This model is widely recognized for its reliability, scalability, and adaptability to both commercial and industrial energy demands.

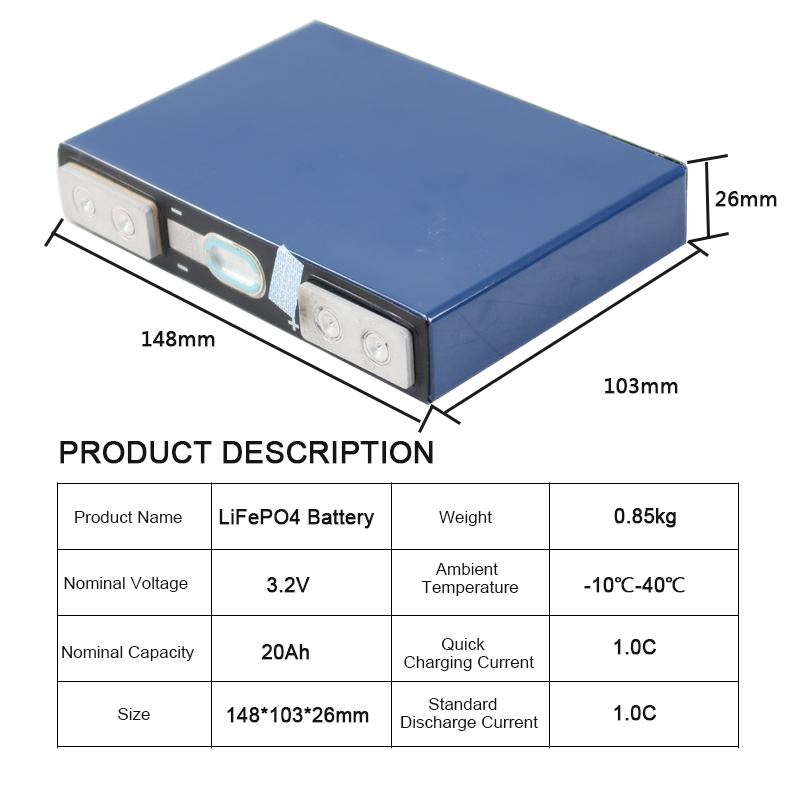

3.2V 20Ah cw尺寸图

About Battery：

1. Commodity standard: This product is a 3.2V lifepo4 battery with complete QR code, brand new A-level.

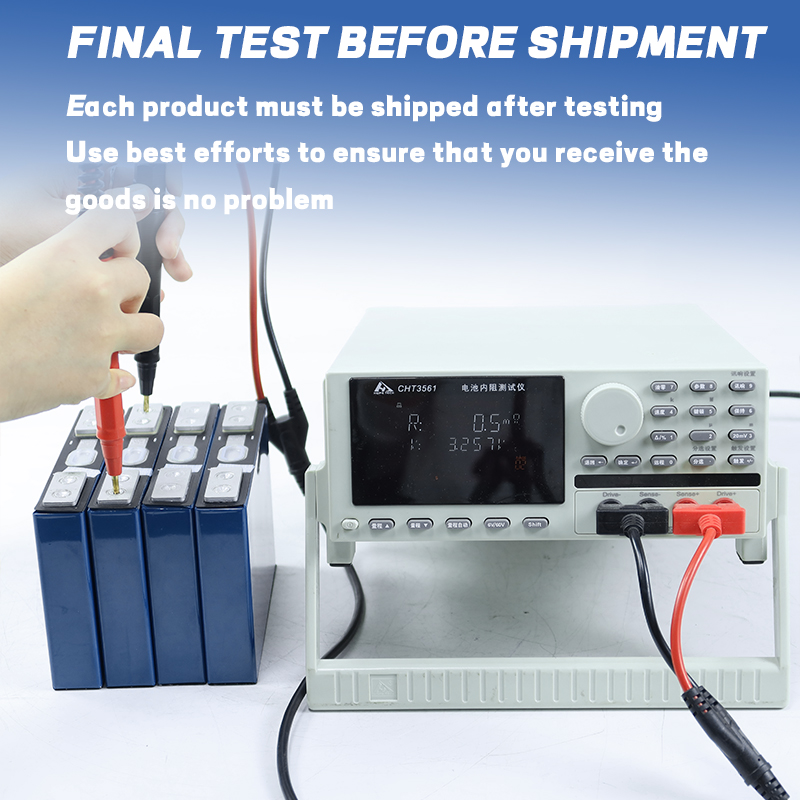

2. Shipping standard: All batteries have been subjected to visual inspection, performance safety test, cycle life test, and voltage and internal resistance matching.

●Voltage: deviation is less than 0.01V

●Resistance: deviation is less than 0.1mΩ

3. The price includes connecting piece and nut. (For example: buy 4 batteries, we will deliver 4 batteries and 4 connecting pieces and a set of M6 screws) If you need more, please contact us online, thank you!

Key Features

• Performance Highlights:

- Long Cycle Life: Supports ≥2000 cycles (100% depth of discharge) with 80% capacity retention, even under high-temperature conditions (45°C) .

- High Discharge Rate: Continuous discharge up to 2C (300A peak), suitable for power-intensive scenarios like electric vehicles and industrial machinery .

- Wide Temperature Range: Operates efficiently from -20℃ to +60℃, adaptable to extreme environments .

• Safety & Compliance:

- Complies with CE, RoHS, and UN38.3 certifications, ensuring environmental and operational safety .

- Flame-retardant materials and robust structural design enhance thermal stability .

Application

- Solar energy storage systems, electric vehicles (e.g., golf carts, logistics trucks), UPS backup power, and off-grid solutions .

- Compatible with modular configurations for building 12V/24V/48V battery packs .

大电芯应用

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
