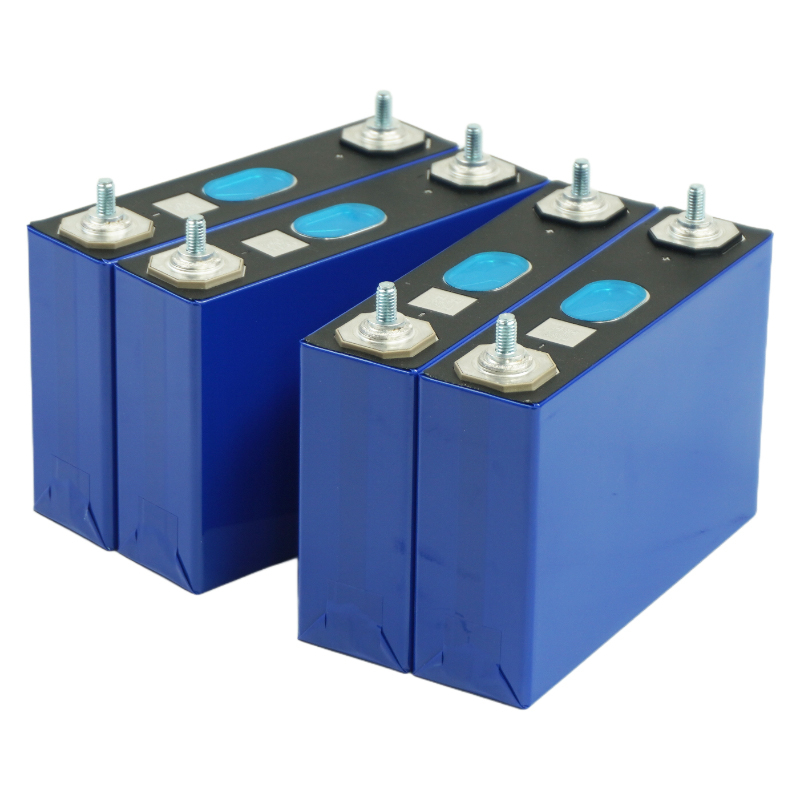

EVE 3.2V 50Ah 50L Lifepo4 Battery Cell

✅ Performance vs. Alternatives

✅ Economic Benefits

• 60% Lower Lifetime Cost vs. lead-acid (fewer replacements, no maintenance).

• Space-Efficient: 30% smaller footprint than cylindrical cells of similar capacity.

✅ Customization Ready

• Flexible Orientation: Can be mounted horizontally or vertically.

• Scalable for 12V/24V/48V Packs (e.g., 4S1P = 12.8V/50Ah).

1. High-Capacity LiFePO4 Chemistry

• 3.2V Nominal Voltage | 50Ah Capacity (160Wh) – Optimized for energy-intensive applications.

• 4,000+ Deep Cycles (to 80% capacity @ 1C/1C) – 5× longer lifespan than lead-acid batteries.

• Flat Discharge Curve: Maintains >3.0V for 90% of discharge, ensuring stable power delivery.

2. Superior Safety & Thermal Stability

• Inherently Non-Combustible: LiFePO4 chemistry resists thermal runaway (no fire/explosion risk).

• Wide Temp Range: -20°C to 60°C operation (with heating support below 0°C).

• Certified Safety: Complies with UL 1973, IEC 62619, UN38.3 (passes nail penetration, crush, and short-circuit tests).

3. High Efficiency & Fast Charging

• 1C Continuous / 2C Pulse Discharge: Supports 50A continuous (100A peak) output.

• 0–100% Charge in 1 Hour (1C charging) with minimal capacity degradation.

4. Robust Prismatic Design

• Compact & Stackable: Easy integration into modular battery packs.

• Low Self-Discharge (<3% per month): Long shelf life for backup applications.

☀️ Solar Energy Storage

• 51.2V/100Ah Home ESS (16S2P): 5.12kWh capacity, 10+ year lifespan.

• Off-Grid Power: Stable performance in extreme temperatures.

Electric Vehicles & E-Bikes

• 48V/50Ah Pack (16S1P): 2.56kWh for 100–120km range (750W motor).

• Fast Charging: 1-hour full charge for commercial fleets.

Industrial & Backup Power

• UPS Systems: Maintenance-free backup for telecom towers and data centers.

• AGV Robots: High efficiency for 24/7 warehouse logistics.

Marine & RV Power

• 12V/200Ah House Battery (4S4P): Safe for confined spaces, no venting needed.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
