Home / Product / NCM Battery / NCM Cylindrical Cell / Panasonic 3.7V 3200mAh NCR18650BD 18650 Cylindrical Lithium Ion Battery 3C 10A

Panasanic 3.7V 3200mAh NCR18650BD18650BD Cylindrical Lithium Ion Battery New Design 3C 10A

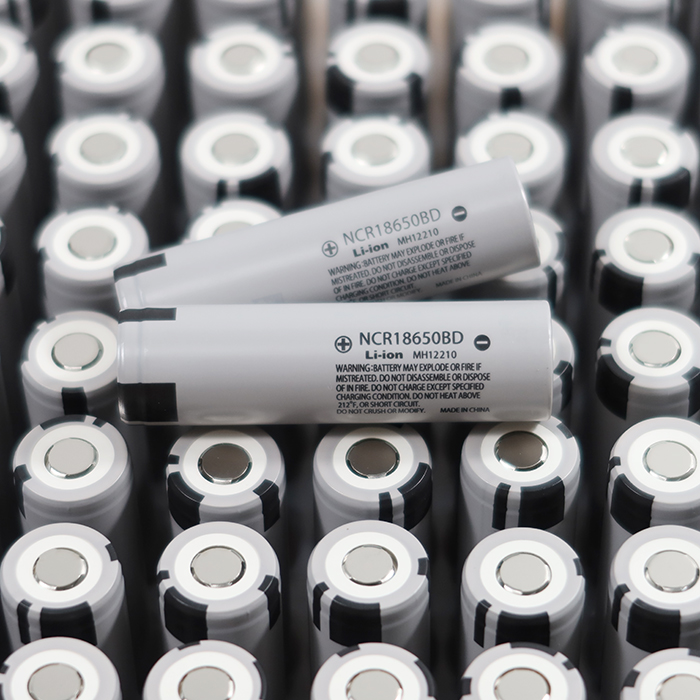

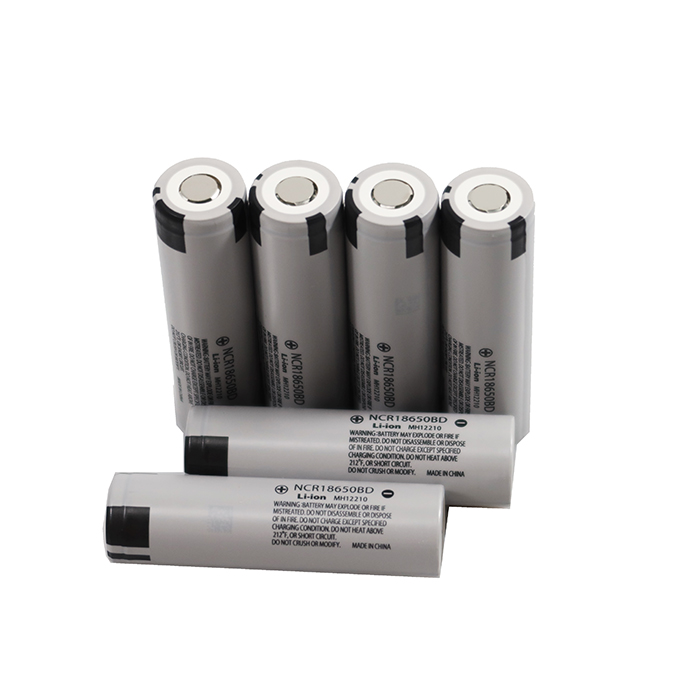

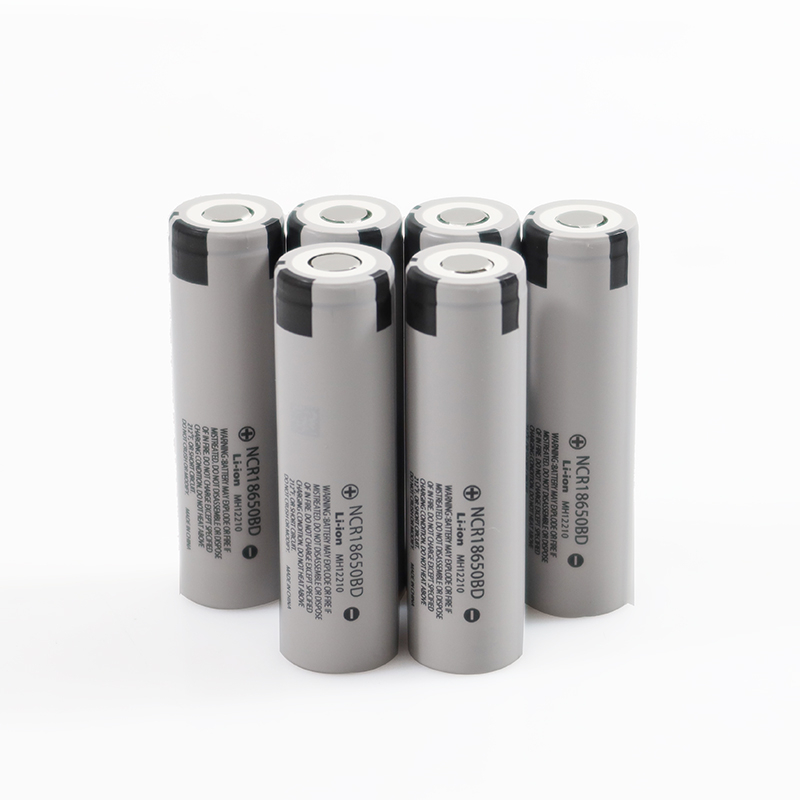

Panasonic 3.7V 3200mAh NCR18650BD 18650 Cylindrical Lithium Ion Battery 3C 10A

Panasonic NCR18650BD High-Capacity Li-ion Cell
3.7V 3200mAh | 3C (9.6A) Continuous Discharge | Precision Engineered for Balance

Brand:
Panasonic
Model:
18650
Cell Grade:
Grade A
Nominal Capacity:
5000mah OEM/ODM
Nominal Voltage:
3.7V
Weight:
48g ±1g
Size(mm):
18.6mm (D) × 65.2mm (H)
Cycle Life:
≥80% capacity after 500 times

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Model Number	NCR18650BD
Battery Size	18.6mm (D) × 65.2mm (H)
Anode Material	NCM
Nominal Capacity	3200mah
Nominal Voltage	3.65V
Max Continuous Charge	CCCV,5000mA(1C),4.1±0.05V,100mA cut-off
Max.Continuous Discharge	DC,15000mA(3C),2.50V cut-off
Discharge(charge) voltage Range	4.20-2.50V
Cell Weight	48.0±1.0g
Cycle life	500cycs

Description

The Panasonic NCR18650BD redefines value in the 18650 segment, combining high energy density, reliable 10A discharge capability, and extended cycle life. Designed for applications demanding stable power and compact form factors – from power tools to backup systems.

21700 18650集合图

Key Features

1. Optimized Energy-Power Balance

3,200mAh Nominal Capacity (11.84Wh): 5% higher capacity than standard 18650 cells (e.g., vs. 3000mAh models).
3C Continuous / 10A Peak Discharge: Supports sustained high-load scenarios without voltage collapse.
Flat Discharge Curve: >85% capacity delivered within 3.2V–3.7V range.

2. Enhanced Longevity & Consistency

500+ Cycles (to 80% capacity @ 0.5C/1C, 25°C): 2× lifespan of low-cost alternatives.
Batch Tolerance: ≤±2% capacity variance (A-grade sorting).

3. Advanced Safety Architecture

Triple-Protection Core: PTC thermistor, CID safety vent, and ceramic-coated separator (shutdown at 140°C).
Certified Robustness: Passes UL 1642 nail penetration (ΔT <100°C) and IEC 62133 overcharge tests.

4. Wide Operational Flexibility

-20°C to 60°C Range: Delivers >70% capacity at 0°C (1C discharge).
Low Self-Discharge: <5% monthly (half the rate of NiMH batteries).

Application

Power Tools & DIY Equipment

Drills/Drivers: Sustains 8A continuous (2.5C) for screwdriving tasks.
Fast Charging: 1.5C charge (0–80% in 40 mins).

Emergency & Backup Systems

LED Lanterns/UPS: 72h+ runtime at 0.2C discharge.
Low Self-Discharge: Retains charge for 3+ years in storage.

Medical & Testing Devices

Portable Monitors: Stable voltage (±2%) for precision sensors.
EMI-Shielded Packs: Compatible with sensitive electronics.

Consumer Electronics & IoT

High-End Flashlights: 1000+ lumens output with single-cell designs.
Wireless Sensors: 5-year operational life in shallow-cycle use.

Widely usd for Lighting, Electric Toys, Power Tools, Cash Machine, POS Terminal, Loudspeaker, Mine Equipment, Speaker, GPS Tracekr, Car Video-Registry, Stand-Alone Telemechanic Syster, GSM Modem, etc

LFP-38120

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.

Certificate
