Views: 0 Author: Site Editor Publish Time: 2026-02-04 Origin: Site
As electric vehicles, energy storage systems, and industrial equipment continue to evolve, battery performance has become a decisive factor in product design. Beyond chemistry alone, cell format now plays a critical role in determining energy density, safety, thermal behavior, and packaging efficiency.
Among cylindrical, prismatic, and pouch formats, pouch cells are increasingly favored in high-performance and space-constrained applications due to their lightweight structure, superior energy density, and design flexibility.
This article explains what pouch cells are, why they matter, and how they compare to traditional battery formats from an engineering and procurement perspective.

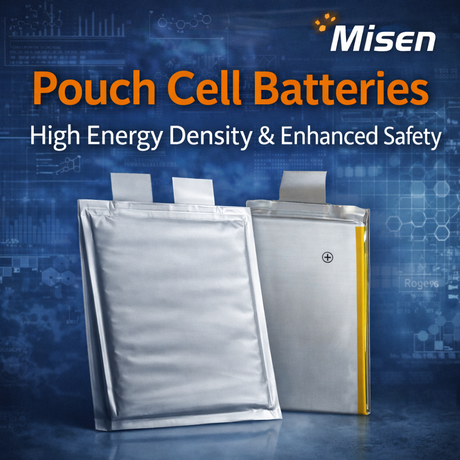

A pouch cell uses an aluminum-plastic laminate film as its enclosure instead of a rigid metal case. Inside, electrodes are assembled through either stacking or winding processes, then sealed within the flexible pouch.
Unlike cylindrical or prismatic cells, pouch cells do not rely on steel or aluminum housings for mechanical strength. This allows:
Thinner overall profiles
Higher volumetric efficiency
Customizable shapes and sizes
These characteristics make pouch cells especially suitable for compact systems where every millimeter counts.
One of the most compelling reasons manufacturers choose pouch cells is their energy density advantage.
Without heavy metal casings, pouch cells achieve a higher active-material ratio. Today’s ternary (NCM/NCA) pouch cells commonly reach 250–260 Wh/kg, outperforming most cylindrical and prismatic counterparts at the cell level.
For OEMs, this translates directly into:
Longer runtime
Extended driving range
Reduced pack weight
Safety is not only about preventing failure—it’s about how a battery behaves when failure occurs.
Metal-cased cells may rupture violently under thermal runaway. In contrast, pouch cells typically release pressure gradually through swelling, significantly reducing explosive risk.
This controlled energy release makes pouch formats attractive for applications where human proximity and system reliability are critical, such as:
Medical devices
Handheld terminals
Light EV platforms
Residential energy storage
Pouch cells naturally offer lower internal resistance due to their flat electrode structure, enabling:
Higher discharge capability
Faster charging
Reduced heat generation
Their planar geometry also simplifies thermal interface design, allowing cooling plates or heat spreaders to contact a larger surface area—an important factor in extending cycle life under high load.
While pouch cells historically held a smaller share of the global lithium battery market, adoption is accelerating as manufacturers pursue higher system efficiency and safety.
Major battery producers have invested heavily in pouch platforms, especially for premium EV models and advanced energy storage solutions.
Beyond automotive, pouch cells are rapidly expanding into:
UAV and robotics
Industrial handheld equipment
Custom battery packs
Residential and commercial ESS
The common driver across these sectors is the same: lighter weight, better packaging efficiency, and safer behavior.
Pouch cells are especially advantageous in scenarios requiring compact design or customized pack geometry:
Electric vehicles and light mobility
Drones and aerospace electronics
Medical and diagnostic equipment
Industrial scanners and POS terminals
Home and commercial energy storage systems
Power tools and portable devices
Their flexibility allows engineers to design battery packs around products—not force products around batteries.
Despite their advantages, pouch cells require thoughtful mechanical integration.
Key design factors include:
Proper compression to control swelling
Foam or frame support for structural stability
Electrical insulation between layers
Thermal interface materials for heat dissipation
When implemented correctly, pouch packs deliver excellent reliability and lifespan. Poor mechanical design, however, can lead to premature degradation.
This is why experienced pouch cell suppliers emphasize not only cell quality, but also pack architecture and assembly standards.
As materials improve and packaging methods mature, pouch cells are expected to further optimize:
Cycle life
Cost efficiency
Module integration density
System-level efficiency—currently lower than rigid formats—continues to rise as manufacturers refine stacking methods and module structures.
For OEMs seeking higher performance without sacrificing safety, pouch cells represent one of the most promising directions in modern battery design.
Pouch cell batteries are not simply an alternative form factor—they represent a shift toward lighter, safer, and more flexible energy storage solutions.
For applications demanding high energy density, compact packaging, and dependable thermal behavior, pouch cells offer a compelling balance between performance and design freedom.
