How Cylindrical Lithium Batteries Compare to Other Battery Types
Future Trends and Innovations in Cylindrical Lithium Battery Technology
Cylindrical lithium batteries are among the most widely used rechargeable power sources, powering everything from electric vehicles (EVs) to portable electronics. As technology advances, these batteries have become more efficient, reliable, and essential in daily life. However, there are still many who may not fully understand their construction, advantages, or even how to maintain them properly. This article delves deep into the key things you need to know about cylindrical lithium batteries, exploring their design, uses, and future in a world that is increasingly dependent on portable energy storage.

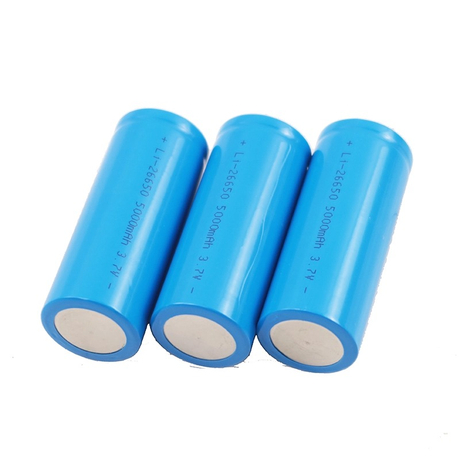

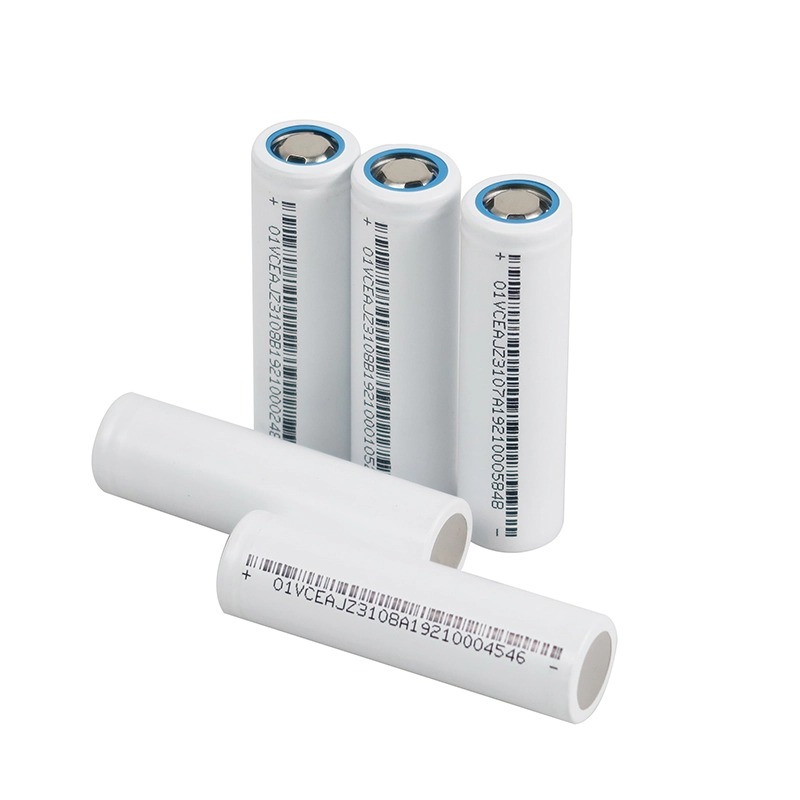

A cylindrical lithium battery is a type of rechargeable battery that uses lithium as its core material for energy storage and release. The "cylindrical" term refers to the shape of the battery—typically, these batteries are formed into a cylindrical case (e.g., 18650, 21700, etc.). Inside this case, a variety of electrochemical reactions occur, allowing the battery to store and release energy. These batteries are well-regarded for their high energy density, longer lifespan, and safety features compared to other battery technologies like lead-acid or nickel-cadmium.
Shape: The cylindrical shape makes these batteries compact and easy to stack or arrange in series, making them ideal for various applications, including electric vehicles and laptops.
Energy Density: Cylindrical lithium batteries offer high energy density, meaning they can store more power in a smaller package.
Rechargeability: Unlike disposable batteries, cylindrical lithium batteries are designed to be charged and discharged multiple times, making them more cost-effective in the long run.
Cylindrical lithium batteries offer numerous advantages over other battery types, particularly when it comes to energy efficiency, size, and longevity.
One of the primary reasons cylindrical lithium batteries are so popular is their high energy density. This means they can store more energy in a smaller volume, which is essential for applications where space is limited but power is still needed. For example, electric cars require high energy density batteries to provide long driving ranges without making the vehicle too bulky.
Cylindrical lithium batteries generally have a much longer lifespan compared to traditional batteries. They are capable of enduring hundreds or even thousands of charge cycles before showing significant degradation. This makes them highly cost-effective for applications like consumer electronics, where frequent replacement would be both inconvenient and expensive.
Lithium-based batteries, especially cylindrical ones, are often built with safety features like pressure vents, thermal protection circuits, and fire-resistant materials. This is especially important in high-power applications, such as electric vehicles, where safety is paramount.
Cylindrical lithium batteries are available in a wide range of sizes and configurations, which makes them versatile and adaptable to various industries. Whether you need a compact power source for a smartphone or a large battery pack for an electric car, cylindrical lithium batteries can be tailored to meet the demands of the application.
Cylindrical lithium batteries are integral to many modern devices and technologies. Here are some of the most common applications:
Electric vehicles, including cars, buses, and bikes, rely on cylindrical lithium batteries for their power needs. These batteries provide the necessary energy density to offer long driving ranges without adding excessive weight to the vehicle.
Smartphones, laptops, and tablets use cylindrical lithium batteries due to their high capacity and compact design. These devices benefit from the long-lasting performance and lightweight nature of lithium batteries, making them ideal for portable applications.
Cordless power tools, such as drills and saws, often use cylindrical lithium batteries due to their ability to provide powerful bursts of energy. These batteries ensure that tools are both portable and reliable, offering professionals and DIY enthusiasts alike a high-performance, long-lasting power source.
Cylindrical lithium batteries are also used in stationary energy storage systems, including home solar energy storage solutions. They allow users to store surplus energy produced by solar panels during the day and use it later at night or during periods of high demand.
While cylindrical lithium batteries are popular, it's essential to understand how they stack up against other types of batteries in terms of performance, cost, and application.

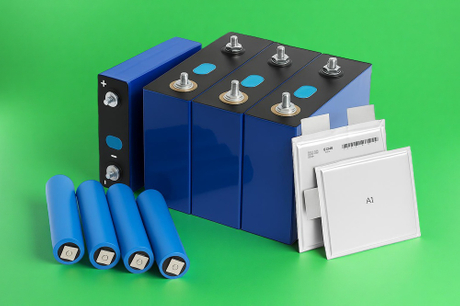

Both prismatic and cylindrical lithium batteries use similar chemical compositions, but they differ significantly in shape and form factor. Cylindrical batteries are typically more robust and durable due to their symmetrical shape, which distributes stress evenly. On the other hand, prismatic batteries tend to be more space-efficient, making them suitable for applications where space is a premium.
Lead-acid batteries have been used for decades, especially in automotive applications. However, cylindrical lithium batteries are far superior in terms of energy density, lifespan, and weight. Lithium batteries are lighter, have a higher energy output, and can last far longer, making them the better choice for modern vehicles and electronics.
Nickel-cadmium (NiCd) batteries are known for their reliability, but they suffer from issues such as "memory effect," which reduces their capacity over time. Lithium batteries do not suffer from this issue and provide a much higher energy density, making them the preferred choice for most modern applications.
Proper charging and maintenance can significantly extend the lifespan of cylindrical lithium batteries. Here are some best practices:
While modern lithium batteries come with built-in protections, consistently overcharging a battery can lead to heat buildup and reduced lifespan. Always use the recommended charger and follow the manufacturer's guidelines.
Lithium batteries should be charged in a temperature range of 0°C to 45°C (32°F to 113°F). Charging in too hot or too cold conditions can damage the battery and affect its performance.
If you need to store cylindrical lithium batteries for an extended period, aim to store them with a charge level of around 40% to 60%. Storing them fully discharged or fully charged can reduce their lifespan.
Though cylindrical lithium batteries are generally safe, there are a few safety precautions to keep in mind to avoid accidents:
Lithium batteries can be sensitive to physical trauma. Dropping or puncturing a cylindrical lithium battery can cause internal short circuits, potentially leading to overheating, fire, or explosion.
As mentioned earlier, exposure to extreme temperatures can cause a lithium battery to fail or malfunction. Always avoid leaving devices with lithium batteries in direct sunlight or freezing environments.
Always use certified chargers designed for your specific battery type. Cheap, uncertified chargers can overheat the battery, potentially leading to fire hazards or other safety issues.
Cylindrical lithium batteries continue to evolve, with several innovations on the horizon that could revolutionize their performance and applications:
Solid-state batteries, which replace the liquid electrolyte with a solid one, promise to offer greater energy densities and improved safety compared to traditional lithium-ion batteries.
Researchers are working on increasing the energy density of lithium batteries, which would allow for smaller, lighter batteries that last longer—ideal for electric vehicles and portable electronics.
As lithium batteries become more widely used, there is an increasing focus on improving recycling methods to reduce environmental impact and make the battery lifecycle more sustainable.
Cylindrical lithium batteries have become a cornerstone of modern technology, powering everything from smartphones to electric vehicles. Their high energy density, long lifespan, and robust design make them indispensable in various industries. Understanding how these batteries work, their advantages, and how to care for them can help users get the most out of their investment while also ensuring safety and reliability.
1. What are the most common sizes of cylindrical lithium batteries?
Common sizes include 18650 (18mm diameter, 65mm length) and 21700 (21mm diameter, 70mm length), with each offering different energy capacities.
2. Can cylindrical lithium batteries be recycled?
Yes, cylindrical lithium batteries can be recycled, though the process is complex. It's important to dispose of old batteries properly to prevent environmental harm.
3. How long do cylindrical lithium batteries typically last?
On average, cylindrical lithium batteries can last anywhere from 3 to 10 years, depending on usage and maintenance.
4. Are cylindrical lithium batteries safe to use?
Yes, cylindrical lithium batteries are generally safe when used and maintained correctly. However, physical damage, overcharging, or improper storage can pose safety risks.
