Prismatic vs Pouch vs Cylindrical: Which Battery Cell Format Fits Your Next Project?

What if the real performance limit of your EV, ESS, or off-grid system isn't chemistry at all—but the shape of the battery cell you choose? In the last few years, the EV and energy storage industries have quietly split into three camps: prismatic, pouch, and cylindrical. Each camp claims their battery cell format is the future, and each one has real data to back it up.

At the same time, market dynamics are shifting fast. Recent research shows prismatic cells are now leading in many EV platforms thanks to efficient packaging and strong thermal management, while cylindrical and pouch formats are gaining ground in specialist applications such as performance EVs, drones, and portable storage.

The challenge for engineers, buyers, and project owners is simple to describe and hard to solve:

How do you pick the right battery cell format when range, safety, cycle life, cost, and mechanical constraints all matter at once?

In this post, you'll learn how cylindrical, prismatic, and pouch battery cell formats differ in structure, performance, cost, and manufacturability. We'll look at how OEMs deploy each type in EVs and energy storage projects, and how solid-state and next-generation technologies might reshape these choices. Finally, we'll translate all of this into a practical selection framework—and show how Misen Power can support you from battery cell selection to pack production.

Key Takeaway

There is no single "best" battery cell format for every project.

• Cylindrical battery cells excel in standardization, robustness, and high-volume manufacturing—great for modular systems and high-power applications.

• Prismatic battery cells deliver excellent packaging efficiency and strong structural integration, making them the current favorite for many EV and ESS platforms.

• Pouch battery cells offer top-tier gravimetric energy density and geometric flexibility, ideal for premium EVs and space-constrained designs, but demand tighter control of mechanics and quality.

The right answer for your project depends on:

• Application (EV, ESS, light mobility, industrial, marine, etc.)

• Design priorities (range vs power vs safety vs cost)

• Lifetime and warranty expectations

• Packaging space and structural constraints

• Certification and manufacturing capability

Your goal is not to crown a single winner, but to match the battery cell format and chemistry to your specific use case—and that is exactly what this article will help you do.

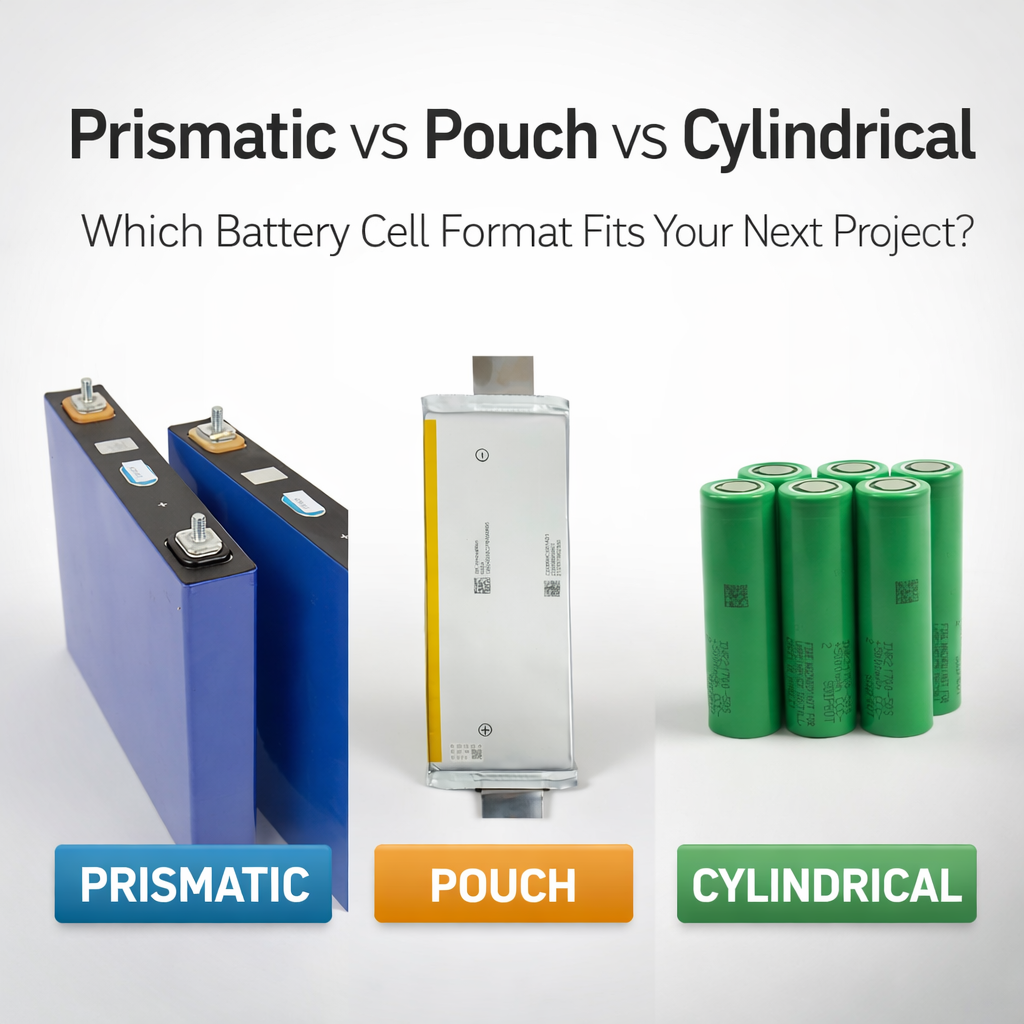

Three Main Battery Cell Formats

Cylindrical Cells

Cylindrical battery cells are the classic "soda-can" format: tube-shaped cells with a rigid metal can, such as 18650, 21700, and larger 46-series cells. Internally, the electrodes and separator are wound in a spiral and soaked with electrolyte.

Key characteristics of cylindrical battery cells:

• Standardization and mature supply:
  Common formats like 18650 and 21700 are widely available from multiple manufacturers, with well-understood performance and quality control.

• High manufacturing automation:
  Cylindrical battery cell production is highly automated, supporting high line speeds and good yields—ideal for large-scale EV and ESS deployments.

• Mechanical robustness:
  The metal can provides strong mechanical protection and helps manage internal pressure, making cylindrical battery cells resistant to vibration and physical abuse.

Typical advantages:

• Excellent consistency between individual battery cells

• Strong power capability and thermal cycling performance

• Flexible pack design via many small units (fine-grained capacity scaling)

Typical disadvantages:

• Lower packing efficiency in modules and packs due to gaps between round cells

• More welds and interconnects, which can increase assembly complexity and require careful thermal and electrical design

• Larger pack footprints compared with prismatic battery cells at similar capacity

Cylindrical battery cells are commonly found in light EVs (e-bikes, scooters), power tools, some passenger EV platforms, and modular ESS solutions where standardization and robustness outweigh the disadvantages in packing efficiency.

Prismatic Cells

Prismatic battery cells are rectangular, box-like cells housed in a rigid metal can. Inside, electrodes are typically stacked like "pages" or folded and arranged to maximize surface area.

Key characteristics of prismatic battery cells:

• High volumetric efficiency:
  The rectangular shape fits neatly into modules and packs, reducing unused volume and improving pack-level Wh/L.

• Large single-cell capacity:
  A single prismatic battery cell can reach hundreds of ampere-hours, reducing the total number of cells and electrical connections required.

• Structural integration:
  The metal housing can contribute to the mechanical structure of modules and packs; in CTP (cell-to-pack) and CTB (cell-to-body) designs, prismatic battery cells are often used as structural elements.

Typical advantages:

• Fewer battery cells and welds for a given pack capacity

• Clean, simple module layouts that are easy to stack in racks or EV under-floor packs

• Very good balance of energy density, safety, and manufacturability in EV and ESS applications

Typical disadvantages:

• Higher customization of dimensions and terminals (good for optimization, but increases tooling and line-change cost)

• Larger format means any thermal issue involves more energy, so cooling design and abuse tolerance must be carefully engineered

Prismatic battery cells are currently leading the EV industry in many markets because they offer strong packaging efficiency and competitive performance, especially with LiFePO₄ chemistry for traction and energy storage.

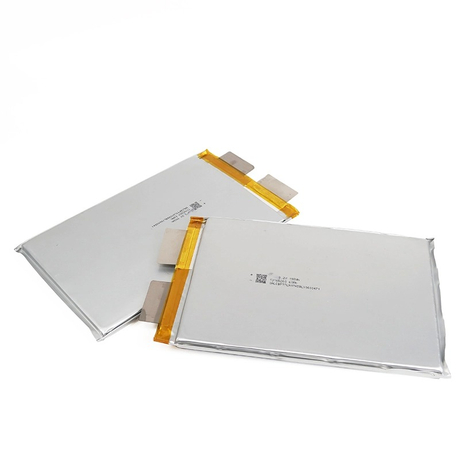

Pouch Cells

Pouch battery cells use a flexible aluminum-laminate film instead of a rigid metal can. Electrodes are typically stacked, then sealed inside the pouch, producing a thin, flat battery cell that resembles a vacuum-sealed food pouch.

Key characteristics of pouch battery cells:

• Very high gravimetric energy density:
  With minimal packaging mass, the pouch battery cell often achieves the highest Wh/kg for a given chemistry and design.

• Geometric flexibility:
  Footprint, thickness, and tab placement are highly configurable, making it easier to fit battery cells into irregular or low-profile spaces.

• Ideal for premium, weight-sensitive designs:
  High-end EVs, drones, and aircraft often use pouch battery cells where every gram and cubic centimeter matters.

Typical advantages:

• Excellent energy density and packaging freedom

• Potentially fewer layers of housing between battery cell and cooling system, allowing more direct thermal paths

• High design flexibility for custom pack architectures

Typical disadvantages:

• Cells naturally swell ("breathing") during cycling and aging, requiring carefully engineered mechanical compression and expansion space

• The flexible pouch requires careful handling, fixtures, and quality control; sealing quality is critical

• Standardization is lower than cylindrical; OEMs often rely on a smaller set of specialized suppliers

Pouch battery cells are common in premium EVs, consumer electronics, UAVs, and emerging e-aviation projects, where performance gains justify the extra engineering effort and cost.

Performance Comparison: Range, Safety, and Lifetime

To make selection easier, it is helpful to compare how different battery cell formats perform on the three parameters that matter most for end users: range (energy), safety, and lifetime.

1. Energy and Range

At cell level, within similar chemistries (e.g., all NCM or all LFP), the energy density tendencies are approximately:

Format	Typical Gravimetric Energy (Relative)	Typical Volumetric Energy (Relative)	Notes
Cylindrical battery cell	Medium–High	Medium–High	High volumetric density for advanced 21700 designs in some studies
Prismatic battery cell	Medium–High	High	Very efficient packing in modules and packs
Pouch battery cell	High	Medium–High	Very high Wh/kg; pack level depends on compression structures

However, real-world range is influenced by pack-level design:

• Structural integration (CTP/CTB with prismatic battery cells) can reduce non-cell mass and improve overall Wh/kg and Wh/L.

• Pouch battery cells may require additional frames and compression plates, partially offsetting their cell-level advantages.

• Cylindrical battery cell packs can exploit advanced cooling and high-power operation to deliver consistent performance across temperatures, which also affects usable range.

2. Safety

Safety starts with chemistry:

• LiFePO₄ (LFP) is more tolerant of abuse and has a higher thermal runaway threshold, making it a leading choice for safer EVs and ESS installations.

• NCM/NMC chemistries provide higher energy but require stricter control over temperature, charging profiles, and mechanical abuse.

• LTO offers outstanding safety and wide temperature range at lower energy density.

The battery cell format then amplifies or mitigates risks:

• Cylindrical:

• Rigid can and small size localize failures, and well-designed packs can isolate a failing battery cell from its neighbors.

• But the large number of cells and welds increases design complexity.

• Prismatic:

• Fewer, larger battery cells simplify monitoring and connection layouts.

• The housing offers strong mechanical protection; however, a failure may release more energy at once, so thermal pathways and safety vents are critical.

• Pouch:

• Flexible housings demand robust external protection and compression.

• Good pack-level containment and venting design is essential to manage gas generation and swelling during abuse events.

Modern packs use a combination of cell selection, mechanical design, and BMS strategies to achieve certifications such as UN38.3, UL, and CE for safety and transport.

3. Cycle Life and Reliability

Cycle life is a function of:

• Chemistry (LFP vs NCM vs LTO, etc.)

• Operating window (DoD, temperature, C-rates)

• Mechanical stress and cooling uniformity

• Quality of the battery cell manufacturing process

Format influences how stress and temperature are distributed in each battery cell and across the pack:

• Prismatic LFP battery cells, with their rigid housings, are well-known for high cycle life in ESS, often achieving thousands of cycles with limited degradation under appropriate conditions.

• Cylindrical battery cells benefit from symmetrical geometry and stable mechanical behavior, delivering good lifetime in high-vibration, high-power environments such as tools and light EVs.

• Pouch battery cells can achieve similarly strong lifetimes when compression and thermal gradients are carefully managed; poor mechanical design, however, can accelerate swelling and capacity loss.

The key point: a high-quality battery cell in a poorly designed pack will still fail early. Format choice and pack engineering must go hand-in-hand.

Cost and Manufacturing: From Cell Factories to Your BOM

When you evaluate total cost, you must look beyond the cost per Wh of a single battery cell and consider the entire Bill of Materials (BOM) and lifetime costs.

Cell-Level and Pack-Level Cost Factors

Key cost drivers:

• Cell materials (active materials, separator, electrolyte, housing)

• Manufacturing complexity and yield

• Number of battery cells and welds per pack

• Structural components, busbars, fasteners

• Cooling hardware and fluid channels

• BMS electronics and harnesses

• Assembly labor and test procedures

A simplified comparison:

Format	Cell Cost Trend	Pack Assembly Complexity	Structural Cost Impact	Typical Use Case Focus
Cylindrical battery cell	Low–Medium	High (many welds/cells)	Medium	Modular packs, high power, standardized platforms
Prismatic battery cell	Medium	Medium	Low–Medium (good structural integration)	EV traction, ESS racks, high volume
Pouch battery cell	Medium–High	Medium–High (compression, fixtures)	Medium–High	Premium EV, aerospace, tight packaging

Even when a pouch battery cell datasheet looks more attractive on a pure Wh/kg basis, the extra cost of compression plates, fixtures, and test requirements may offset the advantage in many mainstream applications.

Standardization vs Customization

• Cylindrical battery cells:

• Strong standardization (18650, 21700, etc.) lowers sourcing risk and simplifies multi-project reuse.

• Ideal when you want to build a family of products around a common battery cell platform.

• Prismatic and pouch battery cells:

• More customization for dimensions and terminals, enabling highly optimized integration into vehicle chassis or ESS cabinets.

• Best for projects that will run at scale for many years, where the initial investment in tooling and design can be amortized.

A good rule of thumb: use more standardized battery cell formats when your volumes are modest or when you need cross-platform reuse; consider custom prismatic or pouch formats when you are committing to large volumes and long product lifecycles.

How OEMs Use Different Cell Formats (and What You Can Learn)

Recent market reports show that prismatic cells lead in many EV platforms, especially in China, where large players like CATL and BYD use prismatic formats extensively with LFP and NCM. Cylindrical and pouch formats, however, are gaining traction in specific segments such as performance EVs, premium vehicles, and specialized commercial vehicles.

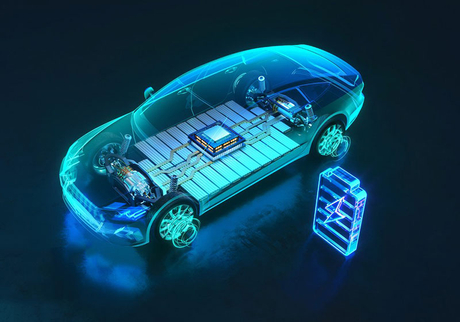

Passenger EVs

• High-volume mainstream EVs:

• Often choose prismatic LiFePO₄ or NCM battery cells for their balance of cost, safety, and volumetric efficiency.

• Cell-to-pack strategies further improve pack-level energy density.

• Premium and performance EVs:

• May adopt high-energy NCM prismatic or pouch battery cells, combined with sophisticated cooling systems and safety structures to support fast charging and long range.

For EVs, battery cell format is chosen to match the target market—mass-market vehicles prioritize cost and robustness, while high-end models trade additional engineering effort for extra range and power.

Energy Storage Systems (ESS)

In home, commercial, and utility-scale ESS:

• Prismatic LiFePO₄ battery cells dominate new deployments due to their strong safety profile, long cycle life, and efficient rack integration.

• Some specialized ESS or UPS systems use LTO or high-power NCM battery cells in cylindrical or prismatic form for ultra-long life or high C-rate demands.

In ESS, the safest and most durable battery cell format (often prismatic LFP) usually wins over the one with the highest energy density on paper.

Light Mobility, RV, Marine, and Industrial

For light mobility (e-bikes, scooters, low-speed EVs), RV systems, marine power, and industrial equipment:

• Cylindrical battery cells are widely used where ruggedness, modularity, and power are key.

• Prismatic LiFePO₄ battery cells are popular in golf carts, forklifts, and low-speed vehicles for their long life and robust safety.

• Some RV and marine systems combine prismatic and cylindrical battery cell packs to separate house loads from high-power loads.

Real projects often use mixed strategies—one battery cell format for traction, another for auxiliary loads—rather than forcing one format to fit every function.

How to Choose the Right Cell Format for Your Next Project

Choosing a battery cell format is ultimately a system-level decision. A structured approach helps.

Step 1 – Clarify Your Application and Priorities

Ask these questions:

1. What is the primary application?
   EV traction, home ESS, C&I ESS, telecom backup, UPS, AGVs, marine, RV, industrial, etc.

2. What matters most?

• Maximum energy (kWh) and range?

• High power (kW) and dynamic response?

• Safety margin and certification ease?

• Lowest cost per kWh over system lifetime?

3. What are the lifetime and warranty targets?
   3–5 years, 8–10 years, or 10,000+ cycles?

4. What are the mechanical constraints?
   Fixed cabinet? Under-floor pack? Limited height? Weight limits?

This information anchors your battery cell choice in reality, not in marketing.

Step 2 – Use a Practical "Format Fit" Guide

Here is a simplified guide to where each battery cell format tends to fit best:

• Choose cylindrical battery cells if you:

• Want proven, low-cost manufacturing and mechanical robustness

• Need modular packs that can scale across multiple products

• Can tolerate slightly lower volumetric packing efficiency

• Choose prismatic battery cells if you:

• Need high volumetric energy density in rectangular packs (EV or ESS)

• Want fewer cells and welds to manage

• Are ready to invest in thermal plates and structural housings

• Choose pouch battery cells if you:

• Require very lightweight, thin, or shape-flexible solutions

• Can design robust mechanical compression and protection systems

• Target high-end applications where performance justifies higher engineering and quality costs

Step 3 – Involve an Experienced Partner Early

When you are:

• Launching a new EV or ESS platform

• Targeting multiple certifications across regions

• Working with aggressive performance goals (fast charging, wide temperature range, high power)

• Designing for tight mechanical envelopes

It is almost always beneficial to engage an experienced battery cell and pack supplier early. They can:

• Propose candidate battery cell formats and chemistries

• Model pack performance and thermal behavior

• Estimate full BOM and lifecycle costs

• Help you avoid design dead-ends and certification pitfalls

Beyond Today: Solid-State and Next-Generation Cells

Solid-state battery cells, which replace liquid electrolytes with solid electrolytes, are one of the most discussed trends in the industry. Many prototypes and pilot lines suggest:

• Higher potential energy density

• Improved safety under certain abuse scenarios

• Wider usable temperature ranges

How would they affect today's battery cell formats?

• Prismatic + solid-state:

• Rigid housings and planar structures match well with brittle solid electrolytes that need controlled pressure and stable interfaces.

• Likely to play a major role in early solid-state EV and ESS designs.

• Pouch + solid-state:

• If mechanical and interface challenges are solved, the combination of a solid electrolyte with a lightweight pouch could unlock very high specific energy for aerospace and premium EVs.

• Cylindrical + solid-state:

• Cylindrical battery cells could benefit from solid electrolytes in terms of safety and cycle stability, but require innovative engineering to manage stresses in the radial direction.

In short, solid-state technology is more about what is inside the battery cell than about its outer shape. Cylindrical, prismatic, and pouch formats are all expected to survive, but their relative roles may shift as solid-state materials and manufacturing processes mature.

Why Work with Misen Power

If you are reading this, you are likely not just curious about battery cell theory—you are planning real products.

Misen Power is a custom battery manufacturer focused on:

• Lithium-ion battery cell and pack solutions (LiFePO₄, NCM, and Li-polymer)

• Solar storage batteries and ESS packs

• EV batteries and mobility power systems

Working with Misen Power gives you:

• Format flexibility:
  We support cylindrical, prismatic, and pouch battery cell formats, allowing us to select the best option for your application rather than forcing one "house format" onto every project.

• Chemistry choice:
  LiFePO₄ for safety and long life, NCM for high energy and power, and LTO for extreme durability and temperature performance.

• End-to-end engineering:
  From battery cell selection and pack architecture to BMS integration, testing, and certification support.

• Application experience:
  Projects in EVs, ESS, RVs, marine, light mobility, telecom backup, and industrial equipment, including high-voltage BMS solutions up to hundreds of volts.

Rather than forcing you to guess which battery cell format is right, we can:

1. Review your requirements (voltage, current, capacity, environment, lifetime, standards).

2. Propose 1–3 battery cell format + chemistry options with pros and cons.

3. Help you validate performance through modeling and prototyping.

4. Support you through to stable mass production.

Conclusion

The "prismatic vs pouch vs cylindrical" debate is not about crowning a universal champion—it's about understanding which battery cell format best fits your specific engineering and business goals.

• Cylindrical battery cells: unbeatable in standardization and robustness for many modular and high-power systems.

• Prismatic battery cells: the current workhorse of EV and ESS, offering excellent packaging efficiency and strong structural integration.

• Pouch battery cells: the format of choice when you need extreme energy density and shape flexibility and can invest in careful mechanical design.

Layer on top of that your chemistry choice, mechanical envelope, target lifetime, and certification requirements, and you have a multi-dimensional puzzle. The good news: you don't have to solve it alone.

By working with a supplier like Misen Power, who understands all three formats and multiple chemistries, you can turn this complexity into a competitive advantage—designing battery systems that are safer, more efficient, and better matched to the real needs of your users.

FAQs

What is the main difference between cylindrical, prismatic, and pouch battery cells?

The main difference is mechanical form factor and how the electrodes are packaged:

• Cylindrical battery cells use a metal can with wound electrodes.

• Prismatic battery cells use a rectangular metal can with stacked electrodes.

• Pouch battery cells use a flexible aluminum-laminate pouch with stacked electrodes.

These differences lead to different trade-offs in packing efficiency, mechanical robustness, manufacturing complexity, and cost.

Which battery cell format is safest?

Safety is strongly influenced by chemistry (e.g., LiFePO₄ vs NCM) and pack design, not just format. Prismatic LiFePO₄ battery cells are widely used in ESS and many EVs because they combine good safety characteristics with robust housing. Cylindrical and pouch battery cells can also be very safe when integrated into well-designed packs with appropriate BMS, cooling, and mechanical protection.

Which battery cell format has the longest cycle life?

Cycle life depends mostly on chemistry and operating conditions. LiFePO₄ and LTO battery cells typically have the longest cycle lives. Among formats:

• Prismatic LiFePO₄ battery cells are common in long-life ESS.

• Cylindrical battery cells perform well in high-vibration and high-power scenarios.

• Pouch battery cell longevity depends heavily on consistent compression and thermal management.

Which battery cell format is best for home energy storage?

For most home energy storage systems, prismatic LiFePO₄ battery cells are a leading choice because they offer:

• Strong safety performance

• High cycle life

• Good volumetric efficiency in cabinet or wall-mounted designs

However, cylindrical LFP battery cells can also be a good choice in modular systems.

How will solid-state batteries affect cell format choices?

Solid-state battery cells may increase energy density and improve safety, but they are likely to be deployed first in prismatic and pouch formats, where planar geometries and controlled pressure are easier to manage. Cylindrical formats will remain important, especially in applications that rely on standardization and robustness, but may require new design approaches to work well with solid electrolytes.
