LiFePO4 (Lithium Iron Phosphate) batteries have become a dominant choice in a variety of energy storage applications, ranging from electric vehicles (EVs) to renewable energy systems. However, one critical factor often overlooked in their optimal performance is cell balancing. This process plays an integral role in maintaining the efficiency, safety, and longevity of LiFePO4 batteries, ensuring they deliver peak performance over their lifespan. In this article, we will dive into what LiFePO4 cell balancing is, why it is essential, and how it contributes to the overall reliability of these batteries.
Cell balancing is the process of equalizing the voltage across all cells in a battery pack to ensure uniformity, enhance safety, and prolong the battery's lifespan.
Without proper balancing, cells in a LiFePO4 battery may perform inefficiently, leading to capacity loss, safety risks, and early battery degradation.
There are two main types of balancing—passive and active—each with its distinct mechanisms and applications.
Cell balancing is a crucial step in the management of battery packs, particularly in LiFePO4 batteries that consist of multiple cells connected in series or parallel—commonly seen in configurations like 16S (16 cells in series) forming a 48V or 51.2V battery pack. Over time, individual cells within the pack can experience different voltage levels due to manufacturing variations, charging/discharging cycles, and environmental factors. If left unchecked, these discrepancies can lead to performance imbalances, where some cells are overcharged while others are undercharged.
In a 16S LiFePO4 battery pack, for example, even a small imbalance of 0.05V per cell can result in a pack-level deviation of 0.8V, which may impact the charging cutoff or trigger protective limits. Balancing ensures that the voltage across all cells remains equal, preventing any one cell from being damaged due to excessive voltage or deep discharge. There are two primary methods for achieving this balance: passive balancing and active balancing.
The importance of cell balancing in LiFePO4 batteries cannot be overstated. LiFePO4 batteries are widely used in energy storage systems, electric vehicles, and power backup applications, where reliability and efficiency are paramount. Without proper balancing, several issues may arise:
Uneven Cell Aging: When some cells charge or discharge at a different rate, they experience different wear patterns, which can shorten the overall lifespan of the battery.
Reduced Battery Capacity: Imbalanced cells can lead to uneven utilization of the battery's total capacity, reducing the amount of energy the battery can store and deliver.
Overcharging/Overdischarging: If some cells in a pack are overcharged while others are undercharged, it can lead to dangerous conditions, such as overheating, leakage, or even fire hazards.
By ensuring all cells in the LiFePO4 battery pack have the same voltage level, cell balancing mitigates these risks, enhancing the safety and performance of the battery.

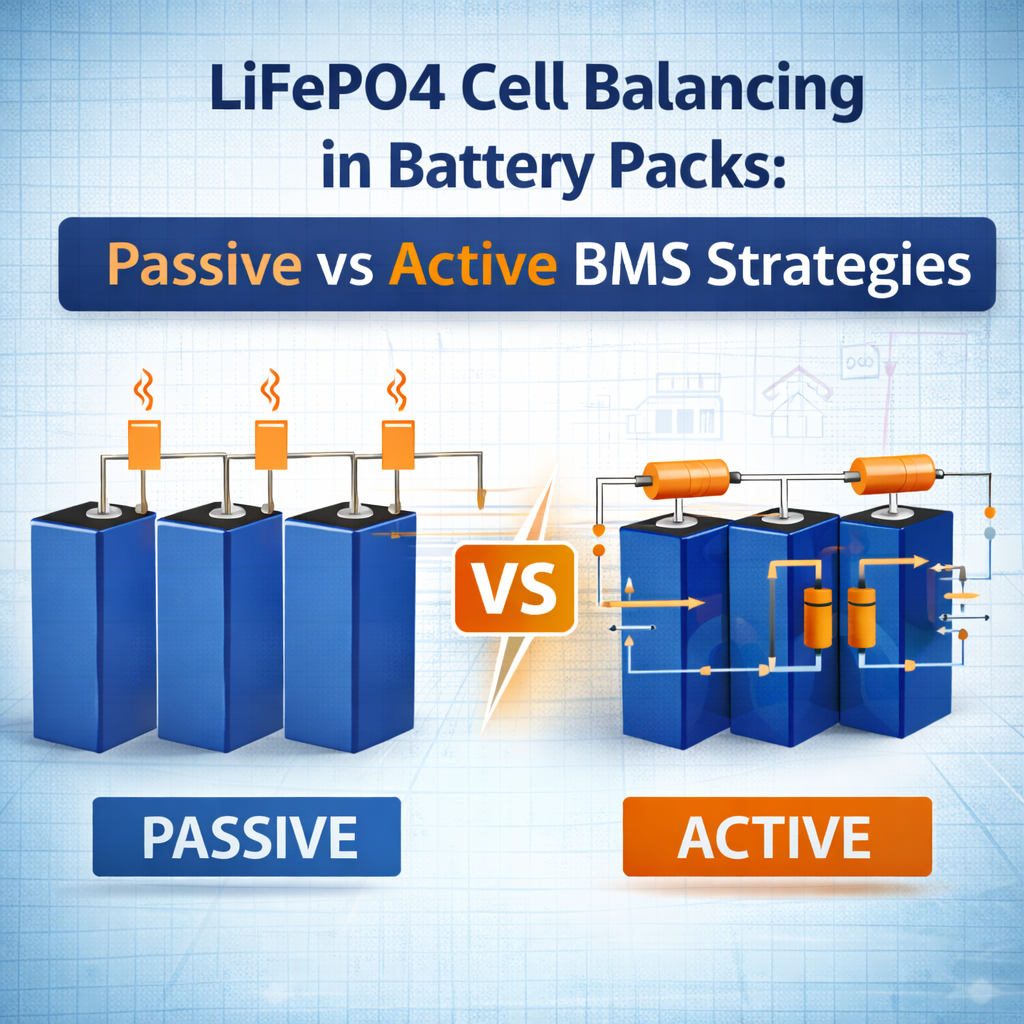

There are two main types of cell balancing methods used in LiFePO4 batteries: passive balancing and active balancing. Each method has its benefits and challenges, and the choice between them depends on the specific requirements of the battery application.
How it works: Passive balancing involves dissipating the excess energy from the higher-voltage cells as heat through resistors. This method allows the battery's voltage levels to be equalized by simply burning off the extra energy from the more charged cells.
Advantages: Passive balancing is a relatively simple and cost-effective method. It is widely used in smaller applications or where cost constraints exist.
Disadvantages: The main drawback is its inefficiency. Energy is lost as heat, making it less ideal for large-scale systems that require high energy efficiency. It also requires more space due to the extra components like resistors.
Application boundary: Passive balancing is generally suitable for low-power energy storage systems (ESS), such as residential solar storage, e-bikes, or small UPS systems, where energy loss and heat generation are manageable, and cost sensitivity is high.
How it works: Active balancing transfers energy from higher-voltage cells to lower-voltage cells, instead of dissipating it as heat. This can be done through various techniques like capacitors or inductive transfer.
Advantages: Active balancing is much more efficient because it does not waste energy. It can help extend the life of the LiFePO4 battery by reducing heat generation and ensuring all cells are utilized evenly.
Disadvantages: This method is more complex and expensive to implement, often requiring a sophisticated Battery Management System (BMS) for operation.
Application boundary: Active balancing is more suited for high-power applications, such as electric vehicles (EVs), large-scale ESS, and industrial battery systems, where efficiency and cell utilization are critical.
Cell balancing is managed through a Battery Management System (BMS), which monitors the voltage of each cell in the battery pack.
In real-world battery packs, such as a 16S 51.2V LiFePO4 system, the BMS typically initiates balancing based on specific trigger conditions:
Voltage discrepancy threshold: When the difference between the highest and lowest cell voltage exceeds a certain threshold (e.g., 30–50 mV), the BMS begins balancing.
State of charge (SOC) stage: Balancing usually occurs near the top of charge (e.g., >95% SOC), where voltage differences are more pronounced.
Aging compensation: Over time, the BMS may adjust balancing behavior based on observed cell aging and capacity drift.
Voltage Measurement: The BMS continuously monitors the voltage of all individual cells within the pack.
Discrepancy Detection: When the system detects that a cell's voltage deviates beyond the set threshold, it initiates balancing.
Balancing Execution:
In passive balancing, the BMS routes excess energy from the overcharged cell to a resistor, converting it to heat.
In active balancing, the BMS transfers energy from higher-voltage cells to lower-voltage ones via capacitive or inductive methods.
Recalibration: After balancing, the system ensures voltage levels are within safe limits and recalibrates for the next cycle.
Proper cell balancing in LiFePO4 batteries provides several benefits that significantly enhance battery performance and longevity:
Prolonged Battery Life: By ensuring that all cells discharge and charge uniformly, balancing minimizes wear and tear on the cells, extending the battery's overall lifespan.
Improved Safety: Cell balancing helps prevent overheating, overcharging, and deep discharge of individual cells, reducing the risk of fire or failure.
Higher Efficiency: Proper balancing ensures that the entire capacity of the battery is used efficiently, which is particularly important in electric vehicles and renewable energy storage systems.
Better Capacity Utilization: With balanced cells, the battery can consistently deliver its maximum rated capacity over its life cycle.
While cell balancing is crucial for battery performance, it comes with its own set of challenges:
Cost and Complexity: Active balancing systems tend to be more expensive and complex compared to passive systems.
Heat Generation: In passive balancing, energy is dissipated as heat, which may not be ideal for larger systems where heat buildup can cause issues.
Space Requirements: Active balancing often requires additional components like inductive circuits or capacitors, which may take up more space in the battery pack.
When selecting a Battery Management System (BMS) for LiFePO4 batteries, consider the following factors:
Compatibility: Ensure that the BMS is compatible with LiFePO4 chemistry and can handle the voltage and current specifications of your battery pack.
Type of Balancing: Choose between passive and active balancing based on your application requirements, energy efficiency needs, and budget.
Monitoring Features: Look for BMS systems that provide real-time monitoring of cell voltage and temperature to ensure safety during the balancing process.
Scalability: If your battery application grows, select a BMS that can scale to accommodate additional cells or packs.
In conclusion, LiFePO4 cell balancing is a critical process that ensures the safety, efficiency, and longevity of batteries used in various applications. By maintaining equal voltage across all cells, cell balancing protects against cell degradation and potential safety risks. Whether using passive or active balancing, choosing the right BMS and ensuring the correct application of cell balancing technology will significantly enhance the performance and lifespan of LiFePO4 batteries.
Engineering Tip: In many cost-sensitive or low-power applications, such as home backup systems or portable battery packs, passive balancing may be sufficient. Active balancing, while more efficient, is often not necessary unless the system requires high energy throughput, long cycle life, or operates under demanding conditions such as fast charging or deep cycling.
A: If cells are not balanced, it can lead to uneven aging, reduced battery capacity, and potentially dangerous situations like overheating or cell failure.
A: Cell balancing is typically done automatically during charging cycles by the Battery Management System (BMS), but it is important to ensure the BMS is functioning correctly at all times.
A: Yes, active balancing is more efficient as it redistributes energy instead of wasting it as heat, making it ideal for larger systems where energy efficiency is critical.
