GOTION
3.2V 340Ah
Grade A
340Ah
3.2V
5.95Kg ± 5 g

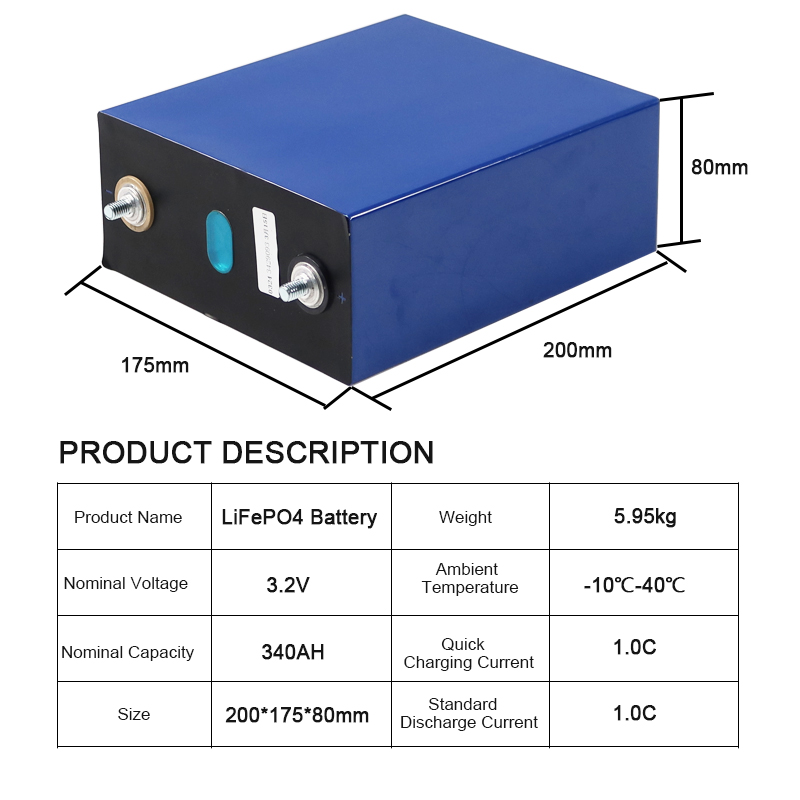

200*175*80MM
6000 times (80% of initial capacity at 0.2C rate, IEC Standard)
| Quantity: | |
|---|---|
Structural Integrity
Robust aluminum alloy casing with laser welding
Advanced electrode design for minimal internal resistance
Precision manufacturing for consistent performance
Performance Characteristics
Energy efficiency: >95% @ 0.5C rate
Self-discharge rate: <3% per month at 25°C
Operating humidity: 5% to 95% non-condensing
Industry-Leading Energy Density
340Ah capacity represents one of the highest in the LFP prismatic cell market
Exceptional volumetric and gravimetric energy density
Significant reduction in system complexity and connection points
Enhanced Safety Performance
Multi-level safety protection including pressure relief valve and thermal fuse
Stable LFP chemistry with excellent thermal runaway resistance
UL1642, UN38.3 certified with full compliance documentation
Exceptional Cycle Life
Engineered for over 6000 deep discharge cycles at 80% DoD
Maintains >80% capacity after extensive cycling
Superior calendar life exceeding 15 years in typical applications
Advanced Thermal Performance
Wide operating temperature range: -30°C to 55°C
Optimized thermal management design for efficient heat dissipation
Consistent performance in extreme environmental conditions
Superior Rate Capability
Continuous discharge capability up to 1C (340A)
Peak discharge capability up to 2C (680A) for 30 seconds
Excellent charge acceptance up to 0.5C (170A)
This versatile and robust LFP cell is ideally suited for applications that prioritize safety, cycle life, and reliability:
Energy Storage Systems (ESS):
Perfect for solar energy storage, residential and commercial backup power systems, and off-grid power solutions.
Electric Vehicles (EVs):
Well-suited for electric buses, low-speed electric vehicles (LSEVs), electric trucks, and other commercial and specialty vehicles.
Material Handling Equipment:
Powers electric forklifts, pallet jacks, automated guided vehicles (AGVs), and other industrial lifting equipment.
Marine and RV:
Provides reliable house power for boats, yachts, and recreational vehicles, supporting navigation systems and onboard appliances.
Telecommunications:
Serves as backup power for 5G base stations, communication towers, and data centers.
Consumer Power Products:
Used in high-capacity portable power stations and solar generators.
