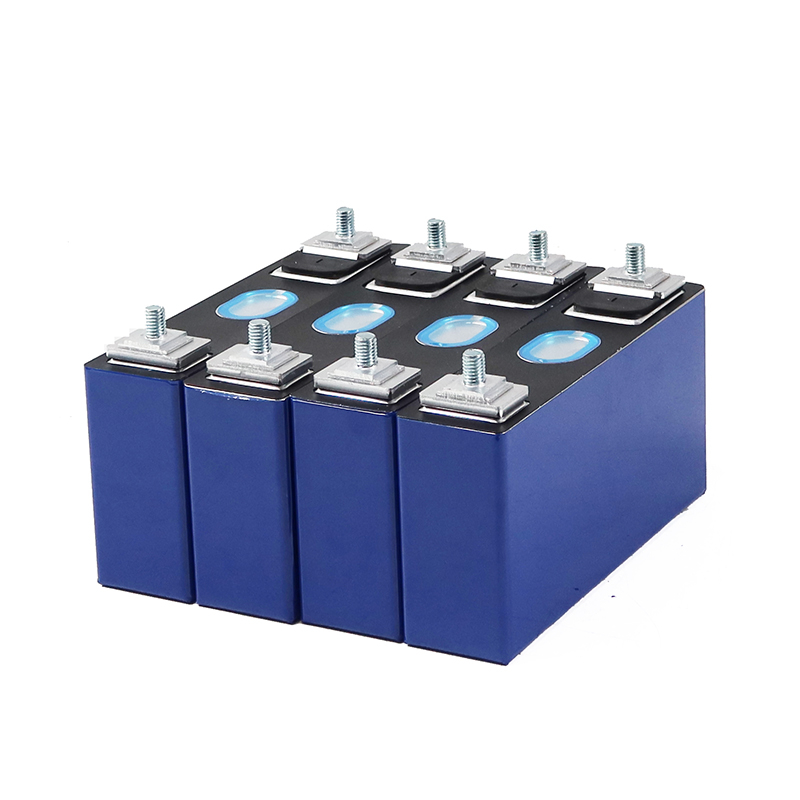

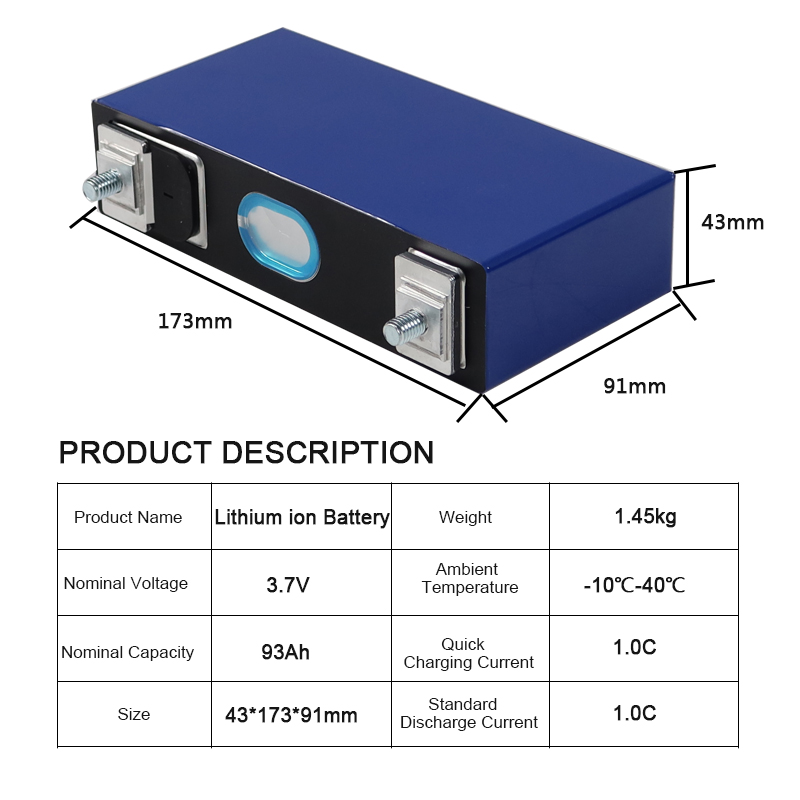

CATL Lithium Ion Li-ion Rechargeable Akku A Grade Prismatic Nmc 3.7v 93Ah Battery Cell for EV Power System

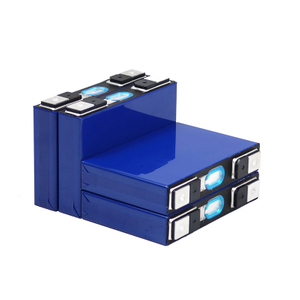

CATL 3.7V 116Ah 117ah Rechargeable Batteries Deep Cycle Lithium Battery for Electric Vehicle RV Forklift

High-performance A Grade Lithium-Ion battery cell for Electric Vehicle (EV) power systems. Featuring 3.7V voltage and 116Ah capacity, ensuring reliable and long-lasting energy storage. Ideal for EV applications requiring efficient and sustainable power solutions.

Brand:
CATL
Cell Grade:
Grade A
Nominal Capacity:
116Ah
Nominal Voltage:
3.7v
Weight:
1.75KG

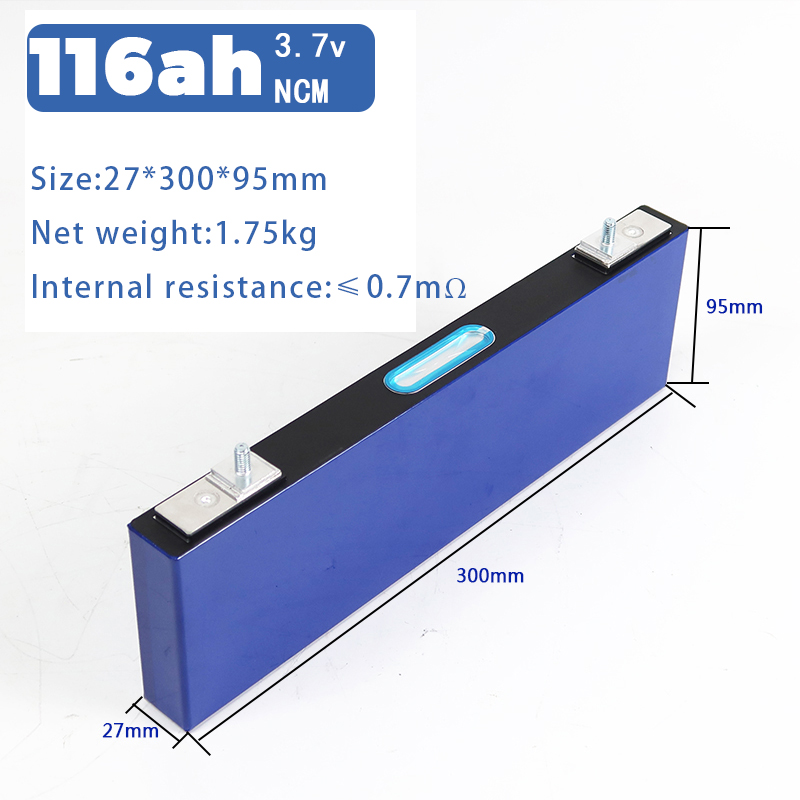

Size(mm):
27*300*95mm
Cycle Life:
4000

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Rated Capacity	116ah
Nominal Voltage	3.7v
Max Discharge Current	1C/ 7A
Max Charge Voltage	4.2v
AC Impedance Resistance	≤0.4mΩ
Charging Temperature	-5-60℃
Discharging Temperature	-30-60℃
Cycle Life	≥4000 times
Weight	1.75kg
Dimensions (LWH)	2730095mm
Applications	Electric Power Systems,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle,used cars and so on.

Introducing the CATL Lithium Ion NMC 116Ah Battery Cell, designed for Electric Vehicle (EV) Power Systems. This A Grade Prismatic Li-ion Rechargeable Akku offers superior performance and reliability. Ideal for powering EVs, this 3.7v battery cell from CATL ensures long-lasting efficiency and durability. Upgrade your EV power system with this high-quality NMC battery cell for enhanced performance and extended driving range.

Key Features

Key Features

Industry-Leading Capacity

429 Wh/cell (3.7V nominal) – One of the highest energy densities in prismatic NMC form factor
Enables compact battery systems with 30% fewer cells versus 60Ah alternatives

Advanced NMC 811 Chemistry

Nickel-rich cathode (8:1:1 Ni:Mn:Co) delivers 260 Wh/kg specific energy
Enhanced thermal stability with proprietary electrolyte additives

Commercial-Grade Endurance

3,500+ cycles at 80% DoD (Depth of Discharge)
<10% capacity degradation after 2,000 full cycles (25°C ambient)

Ultra-Fast Charging Capable

Supports 1.5C continuous charging (0→80% in 32 minutes with liquid cooling)
Ultra-low DCIR: ≤0.35 mΩ minimizes heat generation

Military Safety Standards

CID + PTC circuit protection
Thermal runaway propagation prevention (TRPP)
Flame-retardant casing (UL94 V-0)

Multi-stage protection:
Certifications: UN38.3, IEC 62619, GB/T 36276

Extreme Environment Performance

Discharge: -30°C to 60°C (with heating system)
Charge: -20°C to 55°C

Operating range:
Humidity resistance: 95% RH non-condensing

Application

Application Scenarios

Electric Passenger Vehicles

Ideal for compact EVs, SUVs, and hybrids requiring 400–600km ranges. Compatible with 400V/800V architecture.

Light Commercial EVs

Powers delivery vans, e-trucks, and municipal vehicles where daily deep cycling and fast charging are critical.

E-Mobility Platforms

Core component in electric scooters, autonomous shuttles, and ride-sharing fleets demanding high cycle life.

Specialized EV Systems

Mobile charging stations, hybrid marine propulsion, and off-road utility vehicles.

大电芯应用

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
