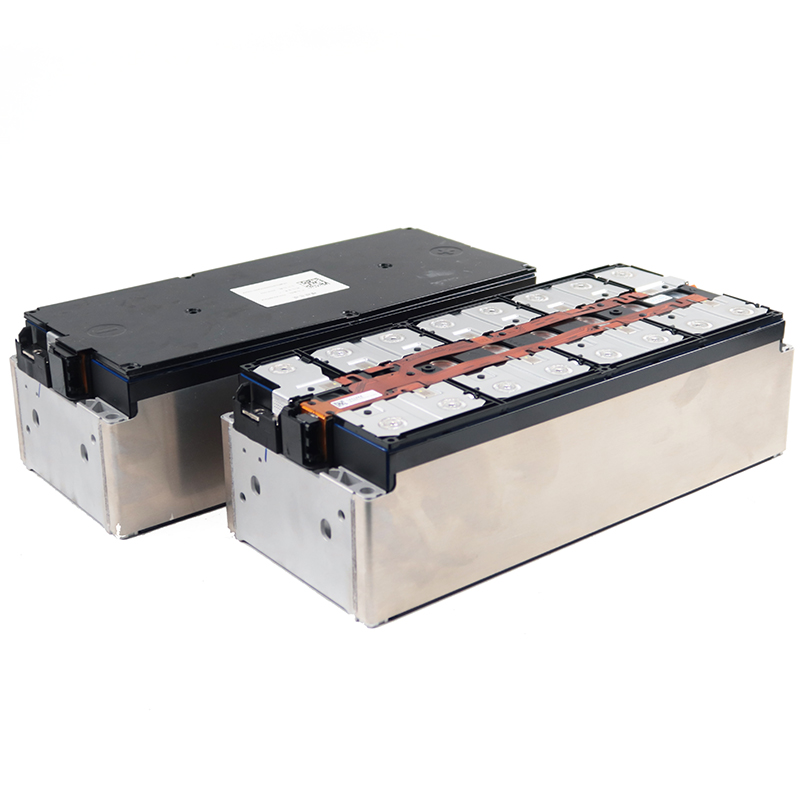

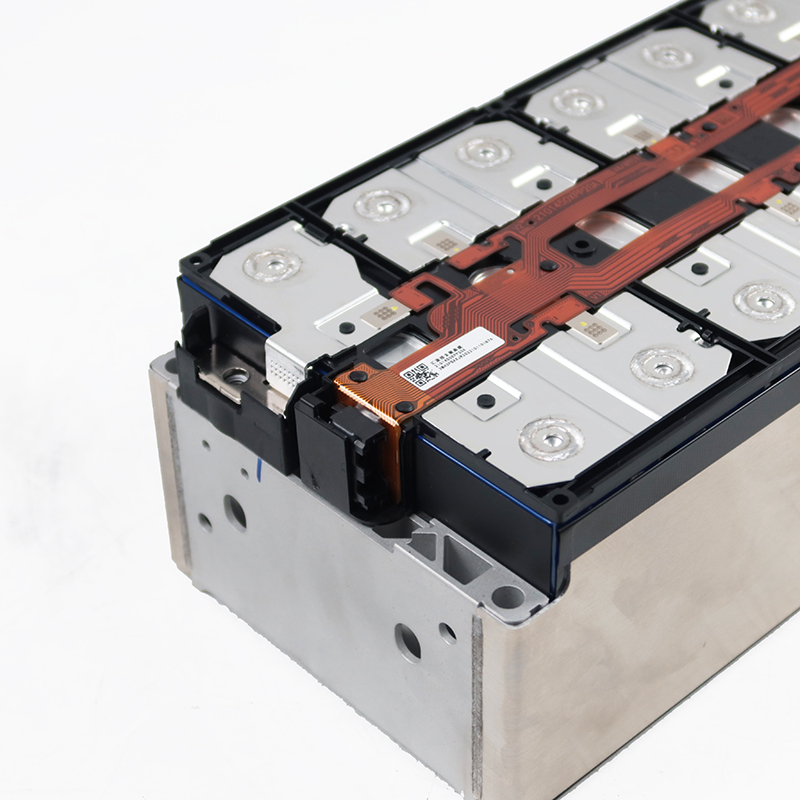

8S1P 29.6V 88Ah 2.604kwh SVOLT NMC Module Lithium Ion Module Battery Pack

High-performance lithium-ion battery pack with 88Ah capacity and 2.604kwh energy. Ideal for electric vehicles, energy storage systems, and industrial applications. SVOLT NMC technology ensures reliable power supply.

Brand:
SVOLT
Model:
8S1P 88Ah Battery Module
Cell Grade:
Grade A
Nominal Capacity:
88Ah
Nominal Voltage:
29.6V
Weight:
12.1kg
Size(mm):

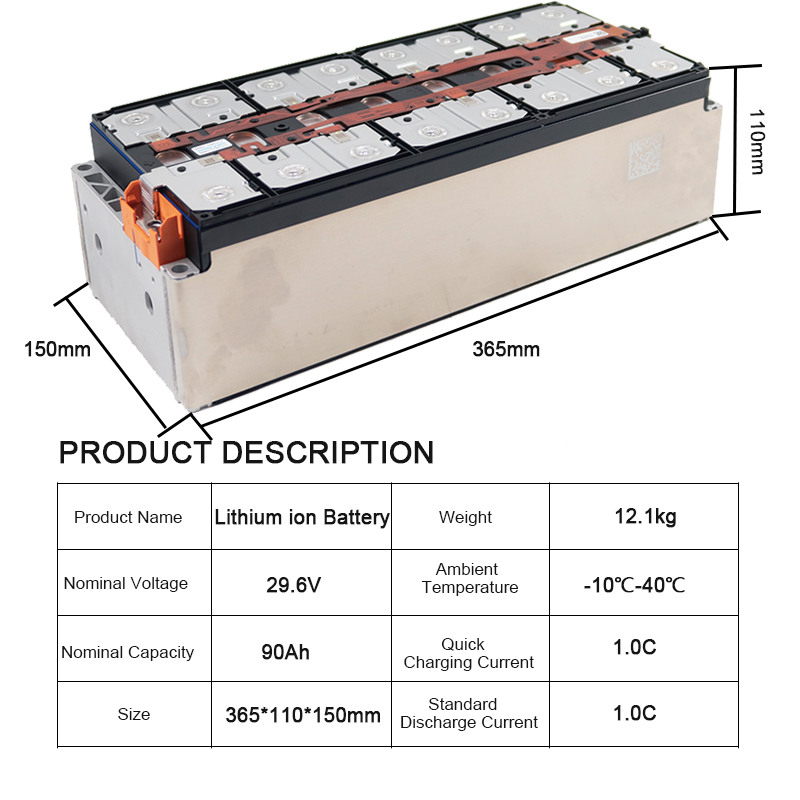

365*110*150mm
Cycle Life:
1500 times (80% of initial capacity at 0.2C rate, IEC Standard)

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Rated Capacity	88Ah
Nominal Voltage(V)：	29.6V
Discharge cut-off voltage：	28.8V
Nominal Capacity(mAh)：	88AH
1Max charge current：	1C
Max discharge current：	3C
Internal Resistance：	＜1.5mΩ
Charge Temperature(℃)：	0~45Centigrade
Discharge Temperature(℃)：	-20~60Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	4000times

Introducing the 8S1P 29.6V 88Ah 2.604kWh SVOLT NMC Module Lithium-Ion Battery Pack, a cutting-edge power solution designed to meet your energy storage needs with efficiency and reliability. This high-performance battery pack offers a capacity of 88Ah and a total energy output of 2.604kWh, ensuring long-lasting power for your applications. Manufactured by SVOLT, a leading name in battery technology, this NMC module is built to deliver optimal performance and durability. Upgrade to the SVOLT NMC Module Lithium-Ion Battery Pack and experience the power of innovation at your fingertips.

Key Features

- High Efficiency: 1C charge/discharge rate supports rapid energy transfer .

- Low Self-Discharge: Retains ~95% charge after 3 months of storage .

- Safety: Built-in safeguards against short circuits, overheating, and reverse polarity .

- Bluetooth Monitoring: Some models include real-time voltage/temperature tracking via mobile apps .

Application

Electric Vehicles (EVs): Ideal for commercial EVs and hybrid systems.
Energy Storage Systems (ESS): Supports solar/wind storage and grid stabilization.
Industrial Equipment: Powers heavy machinery, AGVs, and backup power units.
Marine & Mobility: Suitable for boats, RVs, and off-grid mobile solutions.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
