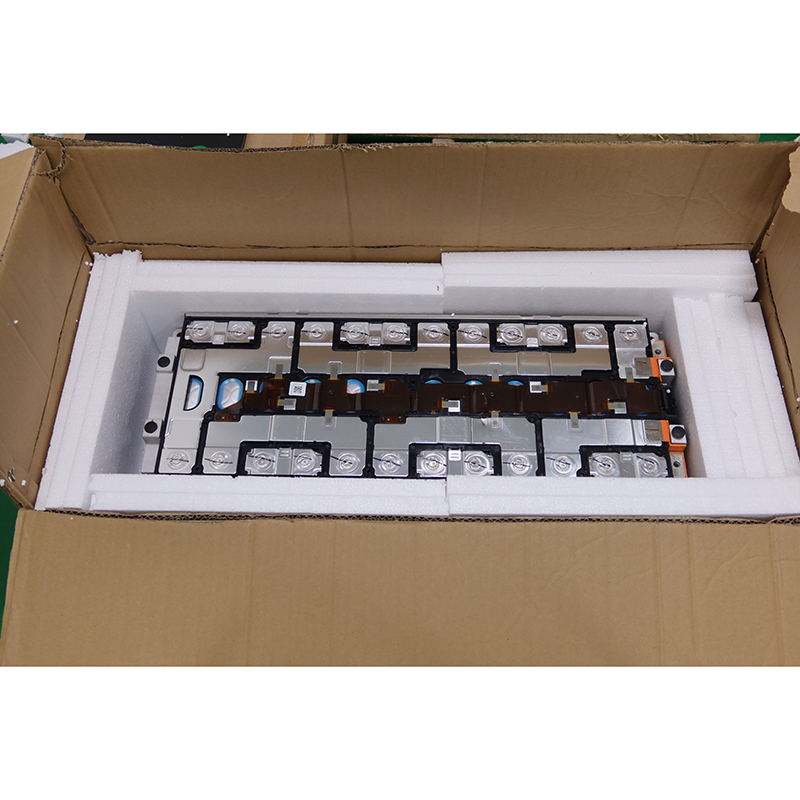

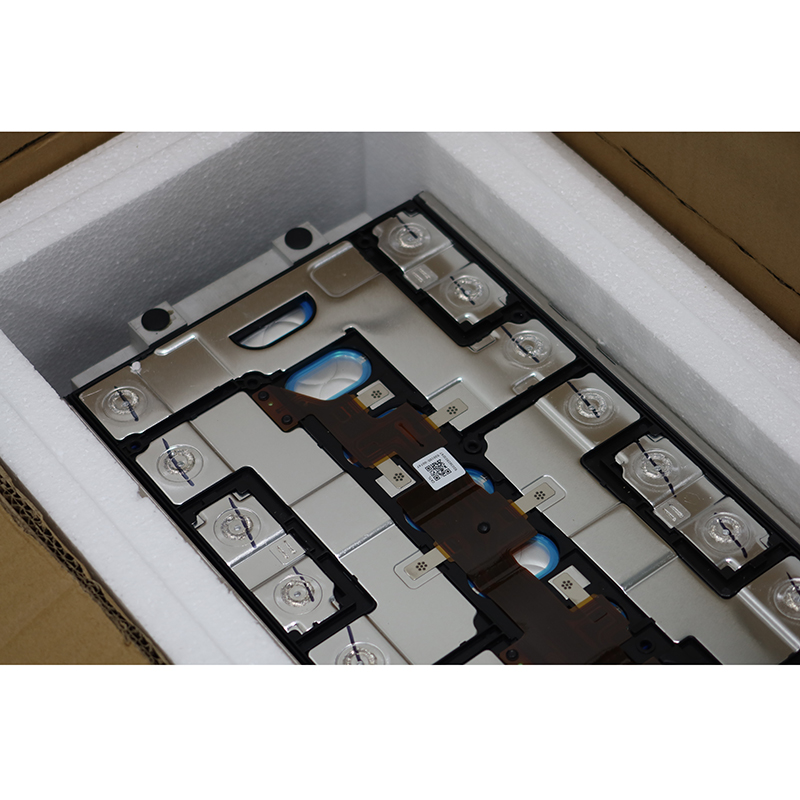

CATL 12S1P 156Ah 69.26kwh Electric Car Ev Battery Power Modules Ev Nmc Battery Module

Introducing the 24V 75Ah Module Battery, a high-performance lithium-ion power solution designed for modern electric vehicles (EVs) and energy-intensive applications. Built with cutting-edge Nickel Manganese Cobalt (NMC) chemistry, this battery module delivers exceptional energy density, reliability, and adaptability across diverse environments.

Brand:
CATL
Model:
12S1P 156Ah Battery Module
Cell Grade:
Grade A
Nominal Capacity:
156Ah
Nominal Voltage:
44.4V
Weight:
30kg

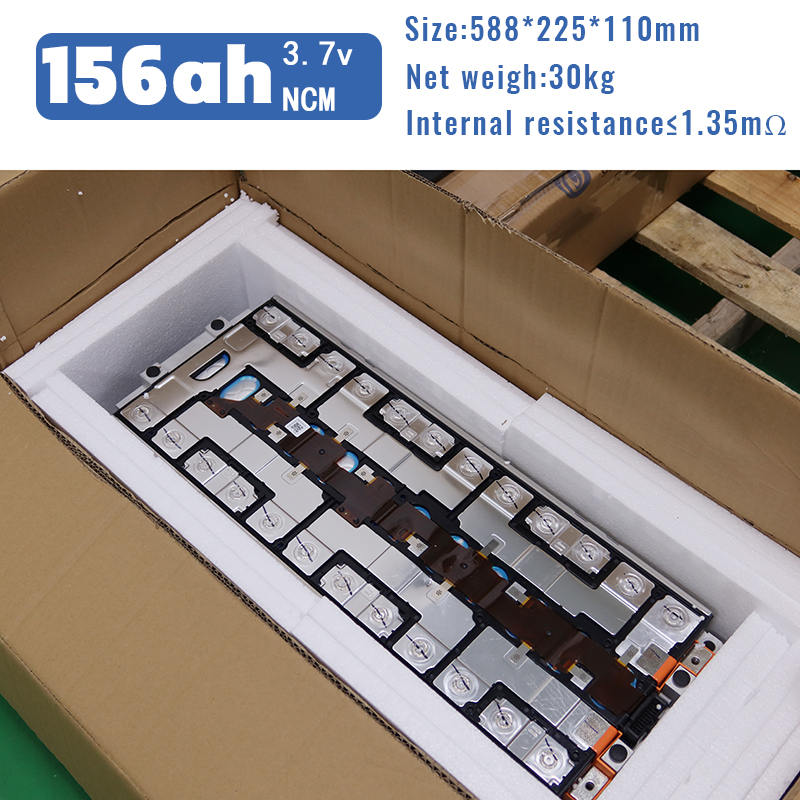

Size(mm):
588*225*110mm
Cycle Life:
1500 times (80% of initial capacity at 0.2C rate, IEC Standard)

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Rated Capacity	156Ah
Nominal Voltage(V)：	44.4V
Discharge cut-off voltage：	43.2V
Nominal Capacity(mAh)：	156AH
1Max charge current：	1C
Max discharge current：	3C
Internal Resistance：	＜1.5mΩ
Charge Temperature(℃)：	0~45Centigrade
Discharge Temperature(℃)：	-20~60Centigrade
Storage Temperature(℃)：	-20~45Centigrade
Cycle life：	4000times

High Energy Density: 69.26kWh capacity for extended runtime and power efficiency.
Robust Lifespan: Advanced Li-ion technology ensures long-term durability and stable performance.
Safety Assurance: Built-in multi-level protection (overcharge/over-discharge/temperature control).
Modular Design: Flexible 12S1P configuration for scalable energy solutions.
Thermal Management: Integrated system optimizes temperature stability in harsh conditions.
Lightweight & Compact: Streamlined structure for easy integration into diverse applications.

Key Features

- High Efficiency: 1C charge/discharge rate supports rapid energy transfer .

- Low Self-Discharge: Retains ~95% charge after 3 months of storage .

- Safety: Built-in safeguards against short circuits, overheating, and reverse polarity .

- Bluetooth Monitoring: Some models include real-time voltage/temperature tracking via mobile apps .

Application

Electric Vehicles (EVs): Ideal for commercial EVs and hybrid systems.
Energy Storage Systems (ESS): Supports solar/wind storage and grid stabilization.
Industrial Equipment: Powers heavy machinery, AGVs, and backup power units.
Marine & Mobility: Suitable for boats, RVs, and off-grid mobile solutions.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
