Home / Product / NCM Battery / NCM Pouch Cell / Nmc E63b E63 50Ah 55Ah 60Ah 63Ah Nmc 3.7V Rechargeable Pouch Cell for Rv EV E-Bike

Nmc E63b E63 50Ah 55Ah 60Ah 63Ah Nmc 3.7V Rechargeable Pouch Cell Li Ion Li-Ion Lithium Polymer Lipo Battery for Rv EV E-Bike

Nmc E63b E63 50Ah 55Ah 60Ah 63Ah Nmc 3.7V Rechargeable Pouch Cell for Rv EV E-Bike

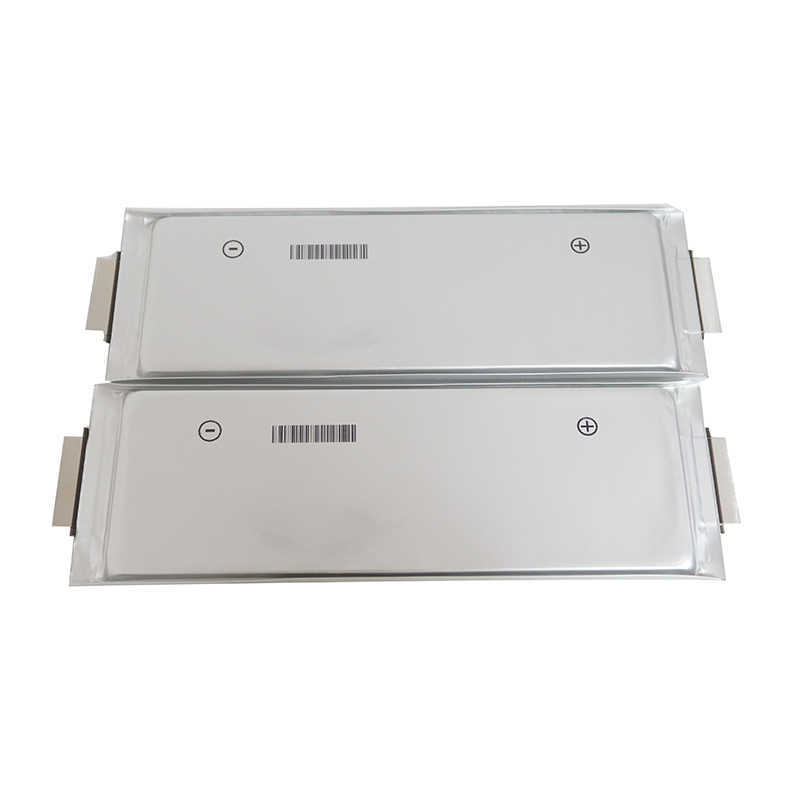

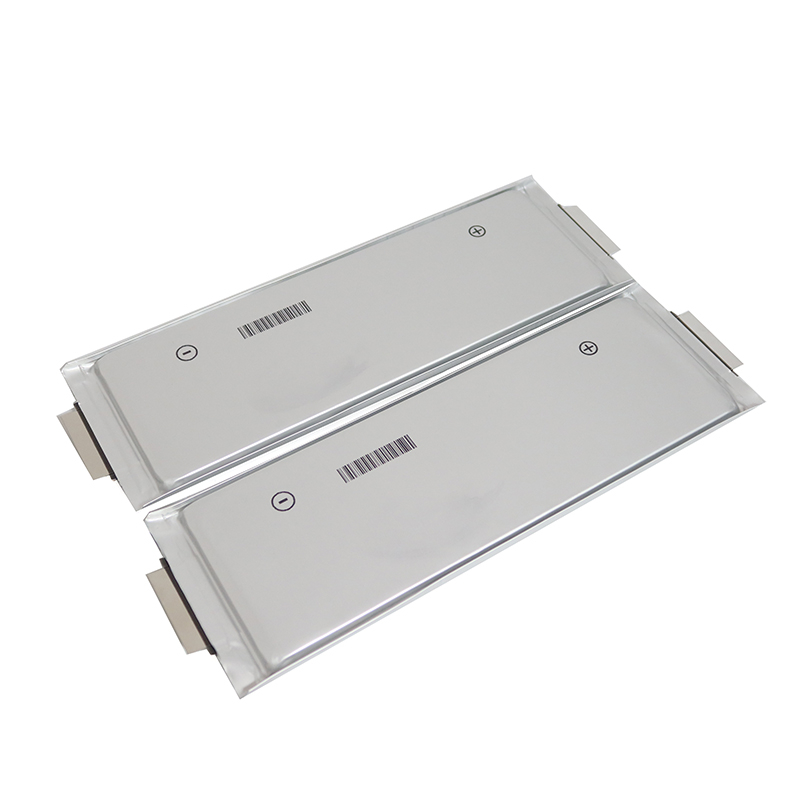

The NMC E63 60Ah is a high-performance lithium nickel manganese cobalt oxide (NMC) pouch cell designed for energy-intensive applications.

Model:
NMC E63
Cell Grade:
Grade A
Nominal Capacity:
66Ah
Nominal Voltage:
3.7V
Weight:
~500-600g (estimated based on similar models)
Size(mm):
Thickness 12* width 100* height 355 (excluding ear) Thick 12* wide 125* high 400 (including ear)
Cycle Life:
More than 2000 time

Quantity:
Availability:





Inquire Add to Basket

Technical Parameters

Product Description

Key Features

Application

Factory

Technical Parameters

Nominal voltage	3.7V
Real Capacity	66Ah
Battery type	Li-ion
Charge current	Less than 80A
Internal resistance	≤ 0.8mΩ
Over charge cut-off voltage	4.2±0.05V
Continuous discharge current	200A 3C
Maximum Pulse discharge current	335A 5C
Discharge Cut-off voltage	2.50V
Weight	890g average
Life cycles	More than 2000 time
Dimensions mm	thickness 12* width 100* height 355 (excluding ear)
Dimensions mm	Thick 12* wide 125* high 400 (including ear)
Charge Voltage	~4.2V (standard for NMC cells)
Weight	~500-600g (estimated based on similar models)

Overview

The NMC E63 60Ah is a high-performance lithium nickel manganese cobalt oxide (NMC) pouch cell designed for energy-intensive applications. This cell is widely used for its reliability, scalability, and suitability for high-power commercial applications .

Nominal voltage: 3.7V (common for NMC chemistry)

Capacity: 60Ah (compatible with variants like 63Ah/66Ah in similar models)

Chemistry: NMC (LiNiMnCoO₂), balancing energy density and stability .

3.7V 60ah

Key Features

50Ah tabless cell (250x120x8mm) features laser-etched current collectors (≤0.8mΩ resistance) and an IP65 casing for dust/water protection. With linear capacity fade (<0.03% per cycle), it’s ideal for C&I peak shaving and solar+storage projects, compatible with 3M™ Novec™ fire suppression systems.

1. Grid Economics

Achieves $180/kWh system cost, competing with LFP for 10MWh+ installations.

Second-life use: repurposes into grid storage with 60% residual capacity post-EV.

2. Smart Monitoring

LoRaWAN-enabled cells transmit SOC data to cloud platforms for remote management.

Serpentine cooling channels ensure <2°C temperature variation across arrays.

3. Regulatory Compliance

Meets UL 9540A, IEC 62619, and CAISO standards for North American grids.

Application

Solar Farms: 10MWh systems for time-of-use arbitrage in California.

Industrial Load Shifting: 500kWh installations reducing factory demand charges by 25%.

Island Microgrids: 1MWh systems replacing diesel generators in remote communities.

Factory

Dongguan Misen Power Technology Co., Ltd. possesses advanced equipment, scientific management techniques, and excellent quality control. We focus on 18650, 21700, 32650, polymer, large single-cell power batteries, energy storage batteries, outdoor power supplies, emergency power supplies, lithium battery packs, and more.And the recycling and preparation of new energy vehicle battery modules, and provide OEM&ODM service.

These products are widely used in electric surfboards, electric bicycles, home energy storage, RV energy, marine energy, UPS systems, tower stations, and solar energy storage systems.

We specialize in this field for many years with advanced equipment,scientific management techniques,and excellent quality control which earn us customers all over the world.

Our factory has been evaluated, certified, and inspected by SGS Group. We aim to be a reliable battery supplier for long-term business relationships. All our batteries have passed international certifications, including UL, CE, ROHS, CB, UN38.3, MSDS, IEC, ISO9001 and others.
